ESV222N04TFC

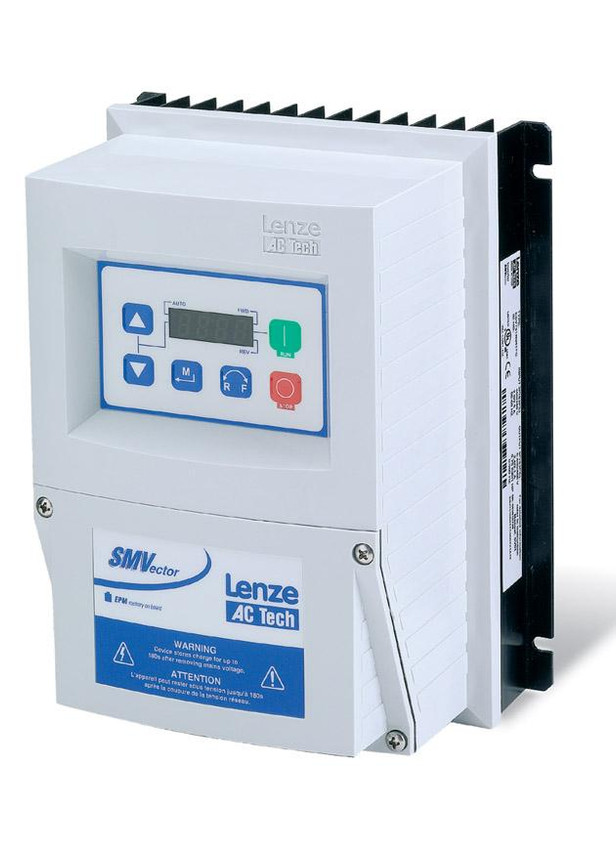

Our popular Lenze AC Tech SMVector series is designed for motor applications that need dynamic speed and torque control. They are ideal for conveyors, food production lines, packaging equipment plus fan and pump systems.

The performance and flexibility make the SMVector an attractive solution for a broad range of AC Motor applications including:

• Food Processing machinery
• Packaging machinery
• Material handling systems
• Conveying Systems
• HVAC systems

• NEMA 1, Indoor Models
• NEMA 4X, Indoor Models
• NEMA 4X, Outdoor Models

• Simple six button programming
• Indoor Duty
• Superior Performance
• NEMA 4X, indoor duty models (ending in XC/XD) are dust proof and washdown duty and are available up to 30 hp
• Filtered input versions available in NEMA 4X (IP65) models for compliance with the CE EMC directive
• Full featured including four modes of operation
• V/Hz (Constant and Variable)
• Enhanced V/Hz (Constant and Variable)
• Vector Speed Control with 60:1 Speed Range
• Vector Torque Control
• RoHS Compliant
• All standards including UL, cUL, CE, GOST and C-Tick
• Ideal for applications required speed or torque control

NEMA 4X (IP65) enclosures are available for either indoor use, suitable for most indoor industrial environments; or indoor/outdoor use that offers UV protection and has higher impact strength at low temperatures.

Learn All About AC Tech Lenze's Switch from the SCM to SMV Series here!

Series Features Include:

• Modes of Operation: Open Loop Flux Vector, Speed or Torque Control, V/Hz (Constant or Variable), Base frequency adjustable to motor specs, Enhanced V/Hz with auto-tuning
• Acceleration/Deceleration Profiles: Two Independent Accel Ramps, Two Independent Decel Ramps, Linear, S-Type, Auxiliary Ramp(or Coast)-to-Stop
• Fixed Accel Boost for Improved Starting
• 500 Hz Output Frequency
• High Carrier PWM Sine-Coded Frequency: 4, 6, 8, 10 or 12 kHz
• Universal Logic Assertion (Selectable): Positive or Negative Logic Input, Digital Reference Available
• Braking Functions: DC Injection Braking, Optional Dynamic Braking
• Speed Commands: Keypad, Potentiometer, Jog, 8 Preset Speeds, Floating Point Control, Voltage: Scalable 0 –10 VDC, Current: Scalable 4 – 20 mA
• Process Control: PID Modes: Direct and Reverse Acting, PID Sleep Mode, Analog Output (Speed, Load, Torque, kW), Network Speed (Baud Rate), Terminal and Keypad Status, Elapsed Run or Power On Time (Hours)
• Status Outputs: Programmable Form “A” Relay Output, Programmable Open Collector Output, Scalable 0-10 VDC / 2-10 VDC, Analog Output
• Run Screen Display: Multiplier: 4-20mA w/500 Ohm Total Impedance
• Ambient Temperature: -10 to 55°C @ 6 kHz, Derate 2.5% per °C Above 40°C

Need More Information?

• AC Tech Lenze SMVector NEMA4X AC Drive Flyer
• AC Tech Lenze SMVector Frame Size & Dimension Brochure
• AC Tech Lenze SMVector Operating Instructions
• AC Tech Lenze SMVector CAD Drawings
• AC Tech Lenze SMVector EZAEDE1001 Memory Module Copier Instructions
• AC Tech Lenze SMVector EZAEDE1000 Memory Module Copier Instructions
• AC Tech Lenze SMVector CANopen Communication Module Reference Guide
• AC Tech Lenze SMVector DeviceNet Communication Module Reference Guide
• AC Tech Lenze SMVector RS-485 LECOM Communication Module Reference Guide
• AC Tech Lenze SMVector ESVZAR0 RS-485 Modbus Communication Module Reference Guide
• AC Tech Lenze SMVector ESVZAR0 RS-485 Modbus Communication Module Reference Guide
• AC Tech Lenze SMVector Additional I/O Module Installation and Operation Manual
• AC Tech Lenze SMVector Communication Modules Mounting Instructions
• AC Tech Lenze SMVector Dynamic Breaking EZXDB/EZXDC Mounting Instructions
• AC Tech Lenze SMVector Remote Keypad Mounting Instructions
• AC Tech Lenze SMVector Remote Keypad H0 Mounting Instructions
• AC Tech Lenze SMVector Remote Keypad H1 Mounting Instructions
• AC Tech Lenze SMV Series Wiring Lab
• AC Tech Lenze 'Using the SMVector in a Package Filler' Application Notes
• Lenze AC Tech SCM/SCF to i500/SMV inverters Product Migration Guide
• AC Tech Lenze Defective Terminal Blocks on SMV 1-5hp Recall Notice

Learn more about AC Tech/Lenze Drives and More!

• AC Tech/Lenze SMV Series Video Resources
• Resetting VFDs to Factory Default Parameters
• Why Change from the AC TECH SCM Series to the SMV series?
• What are VFDs & Who Should Use Them?
• What does VFD really mean?
• All About AC Drives
