EQ7-4060-C

EQ7-4060-C

Alt: EQ7 Series

$4,559.22

VFD, 60hp 91A VT / 50hp 75A CT, 460V, 3 Phase, Chassis Enclosure, Four Selectable Control Modes, 21.65H x 12.60W x 10.04D"

Weight:
80.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

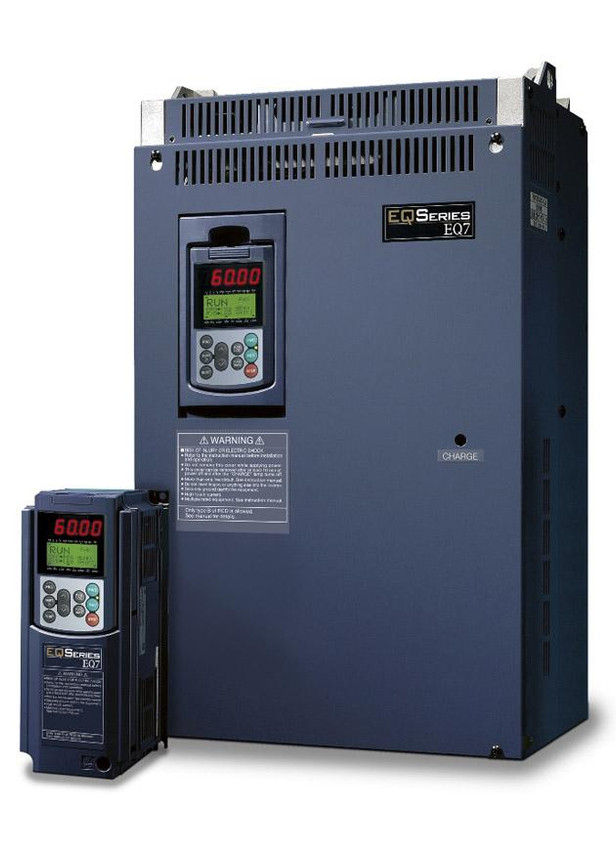

The Teco EQ7 series is available from 1 to 1000 hp and is a high performance, full-featured drive!

  • Designed for Constant / Variable Torque Applications
  • V/F, Dynamic Torque, Sensorless and Sensor (Encoder Feedback) Vector mode
  • Backlit LCD / English Language with LED Monitor Display / Selections for 6 Languages
  • Keypad may be Used as Copy Unit / Remote Mounting Options
  • Extensive Diagnostic Information on LCD Display
  • State-of-the-Art Torque Limit and Control Features
  • PID control with Sleep Mode Function
  • Provided with low -noise control power supply
  • 1 to 125 HP @ 230V & 1 to 900 HP @ 460V (Constant Torque)
  • 1 to 150 HP @ 230V & 1 to 1000 HP @ 460V (Variable Torque)
  • Extensive I/O capabilities
  • Encoder feedback option for applications requiring precise speed control
  • PC Boards have conformal coating and the DC Bus is tin plated
  • External Mounting of Heatsink when Installed in Control Panels(>40HP)
  • All Units are IP20 at 40hp and below and IP00 at ratings >40HP (Nema 1 Option Kits available)
  • Built-in RS485 Communications (Modbus) / Optional Profibus-DP, DeviceNet, EtherNet, BACNet, Metasys
  • DC Link Chokes Included in 75HP and Above hp units shipped loose as chassis item inside crate
  • uL and CE Approved

Series Features Include:

  • Designed for Constant / Variable Torque Applications
  • V/F, Dynamic Torque, Sensorless and Sensor (Encoder Feedback) Vector mode
  • Backlit LCD / English Language with LED Monitor Display / Selections for 6 Languages
  • Keypad may be Used as Copy Unit / Remote Mounting Options
  • Extensive Diagnostic Information on LCD Display
  • State-of-the-Art Torque Limit and Control Features
  • PID control with Sleep Mode Function
  • Provided with low -noise control power supply
  • 1 to 125 HP @ 230V & 1 to 900 HP @ 460V (Constant Torque)
  • 1 to 150 HP @ 230V & 1 to 1000 HP @ 460V (Variable Torque)
  • Extensive I/O capabilities
  • Encoder feedback option for applications requiring precise speed control
  • PC Boards have conformal coating and the DC Bus is tin plated
  • External Mounting of Heatsink when Installed in Control Panels(>40HP)
  • All Units are IP20 at 40hp and below and IP00 at ratings >40HP (Nema 1 Option Kits available)
  • Built-in RS485 Communications (Modbus) / Optional Profibus-DP, DeviceNet, EtherNet, BACNet, Metasys
  • DC Link Chokes Included in 75HP and Above hp units shipped loose as chassis item inside crate
  • uL and CE Approved
