EQ7-2125-C
Alt: EQ7 Series
$9,581.22
VFD, 125hp 346A VT / 100hp 283A CT, 230V, Three Phase, Chassis Enclosure, Four Selectable Control Modes, 29.53 x 20.87 x 11.22" (HWD), (Cannot Ship UPS, Drop Ship Only Via Truck)
- Weight:
- 140.00 LBS
- Minimum Purchase:
- 1 unit
Description

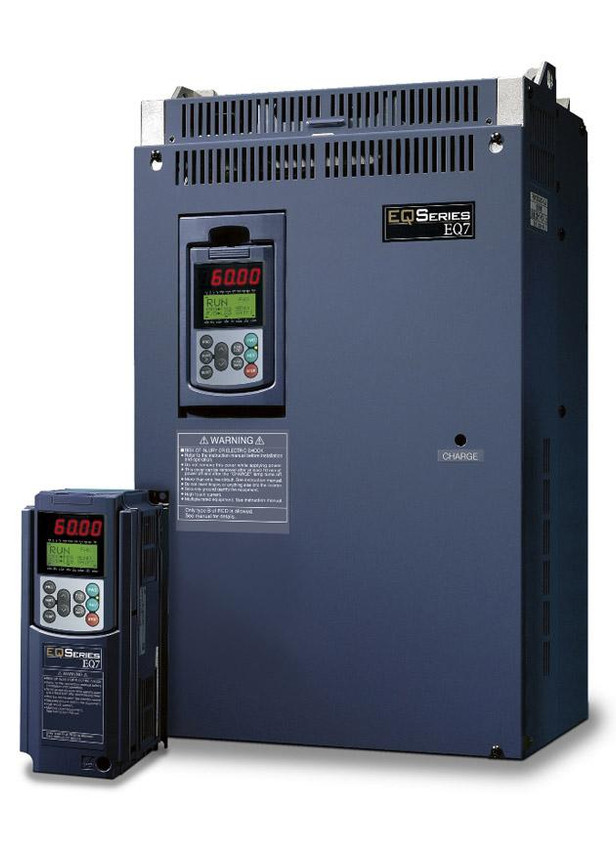

The Teco EQ7 series is available from 1 to 1000 hp and is a high performance, full-featured drive!
Series Features Include:
- Designed for Constant / Variable Torque Applications
- V/F, Dynamic Torque, Sensorless and Sensor (Encoder Feedback) Vector mode
- Backlit LCD / English Language with LED Monitor Display / Selections for 6 Languages
- Keypad may be Used as Copy Unit / Remote Mounting Options
- Extensive Diagnostic Information on LCD Display
- State-of-the-Art Torque Limit and Control Features
- PID control with Sleep Mode Function
- Provided with low -noise control power supply
- 1 to 125 HP @ 230V & 1 to 900 HP @ 460V (Constant Torque)
- 1 to 150 HP @ 230V & 1 to 1000 HP @ 460V (Variable Torque)
- Extensive I/O capabilities
- Encoder feedback option for applications requiring precise speed control
- PC Boards have conformal coating and the DC Bus is tin plated
- External Mounting of Heatsink when Installed in Control Panels(>40HP)
- All Units are IP20 at 40hp and below and IP00 at ratings >40HP (Nema 1 Option Kits available)
- Built-in RS485 Communications (Modbus) / Optional Profibus-DP, DeviceNet, EtherNet, BACNet, Metasys
- DC Link Chokes Included in 75HP and Above hp units shipped loose as chassis item inside crate
- uL and CE Approved
