Pepperl+Fuchs
305469-100007

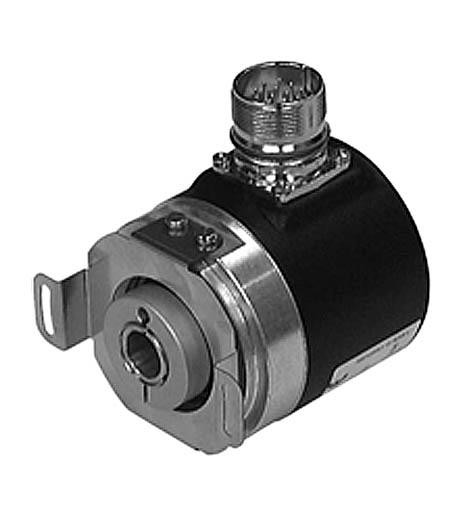

Incremental Rotary Encoder, Ø58mm, IO-Link Programmable, 6mm Shaft, M23 Type 9416, Servo Flange, Returns of This Item Must Be Approved by Manufacturer
$352.18
305469-100006
Alt: ENI58PL-S06SA5-1024CGR-RBE
$331.05
Incremental Rotary Encoder, Ø58mm, IO-Link Programmable, 6mm Shaft, M12 8-Pin, Servo Flange, Returns of This Item Must Be Approved by Manufacturer
- Weight:
- 1.00 LBS
- Minimum Purchase:
- 1 unit
Description
Series Features Include:
- Housing ∅ 58 mm
- Recessed hollow shaft
- Pulse count configurable from 1 - 16384
- Direction of rotation configurable
- Output type configurable
- Detection type: magnetic sampling
- Linearity error: ± 0.1 °
- Operating voltage: 4.75 - 30 V DC
- No-load supply current: max. 50 mA
- Output type: HTL/TTL configurable
- Load current: max. per channel 50 mA , short-circuit protected, reverse polarity protected
- Output frequency: max. 1000 kHz
- Housing: nickel-plated steel , painted
- Flange: Aluminum
- Shaft: Stainless steel
