Product image is representative only, please verify specifications.
SCE-424816WFLP
$1,068.19

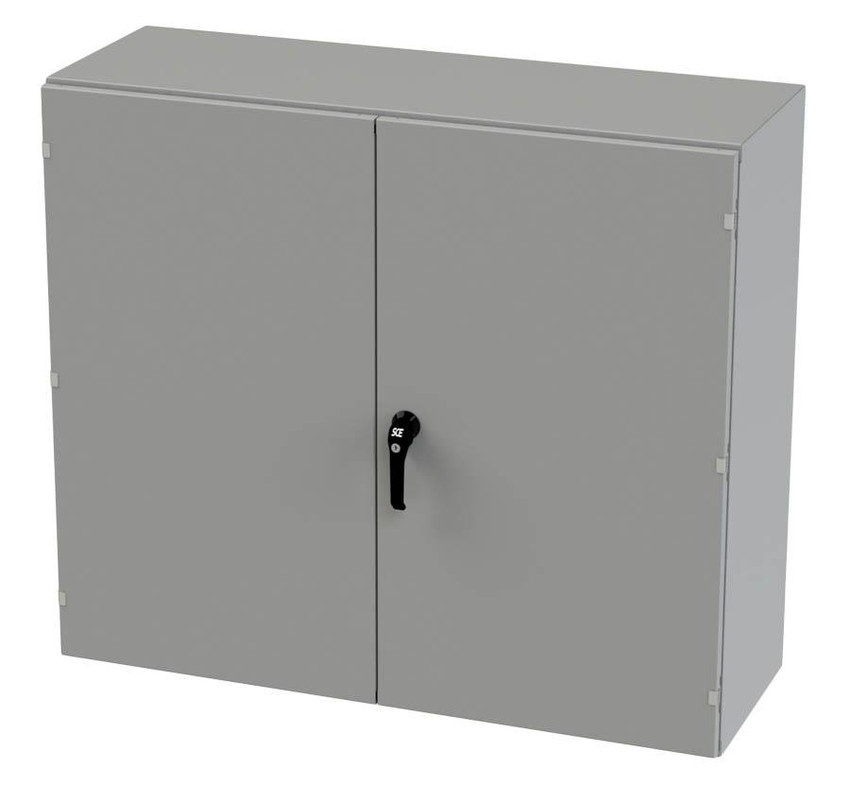

Enclosure WFLP, 42x48x16", ANSI-61 Gray, NEMA/UL 3R, 12, NEMA 13, IP55
- Weight:
- 224.40 LBS
- Minimum Purchase:
- 1 unit
Build Your Complete VFD Solution
Create a complete system with recommendations on AC drives and compatible components like motors, circuit breakers, and protection equipment.
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Specifications
Enclosure Type
Hinge/Latch
Material
Carbon Steel
All - Specific Ratings
IP55, NEMA 3R, NEMA 12, NEMA 13
Series
SCE Series
Warranty
2 Years
Length/Depth
16"
Weight
224.4
Height
42"
Width
48"
Series Features Include:
- 0.075 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Collar studs 3/8-16 provided for mounting optional panels.
- Mounting holes in back of the enclosure for wall mounting.
- Mounting hardware, sealing washers and hole plugs included.
- Black keylocking/padlocking handles.
- 3-point latching mechanism.
- Overlapping Doors.
- Removable print pocket.
- Pour in place oil & water resistant gasket
- Ground stud on door and body.
