SCE-24R2012LP
$317.99

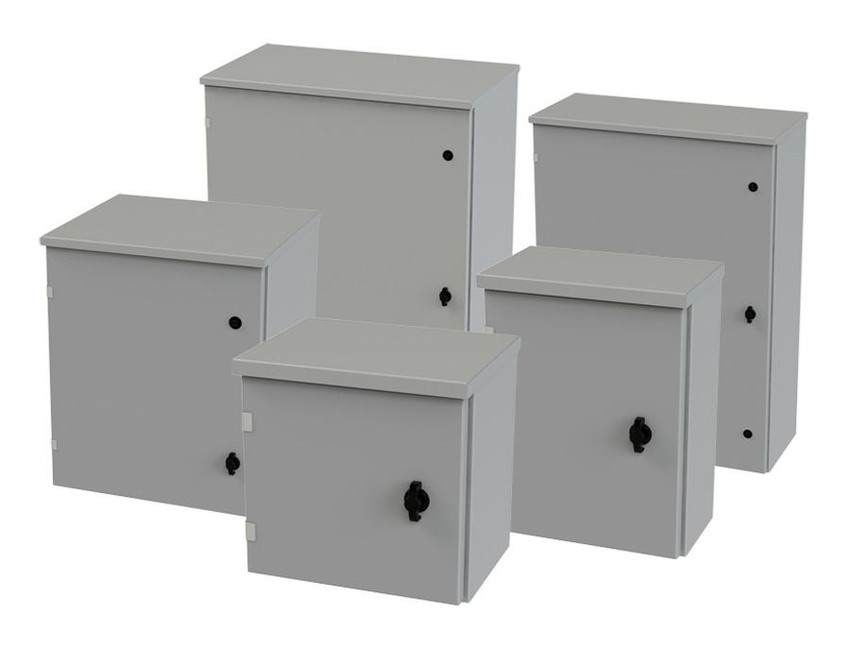

Enclosure Type-3R Hinged Cover, 24x20x12", ANSI-61 Gray, NEMA/UL 3R, IP32
- Weight:
- 52.80 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.048 In., 0.063 In. & 0.075 In. Galvannealed steel
- Concealed hinges.
- Spot weld construction.
- Rain cap.
- Mounting hole in back of enclosure.
- Collar studs 3/8-16 provided for mounting optional panels.
- Black quarter turn wing knob latch with padlocking provisions.
- Doors open 180 degrees.
- Pour in place oil & water resistant gasket
- Ground stud on door & body.
- 3/8-16 Grounding Kit.
- Sub-panel mounting hardware included.
