$200.68
Product image is representative only, please verify specifications.
SCE-36XEL3110SS6LP
Alt: Mounting Foot Kit SCE-ELMFK4 Included
$2,181.25

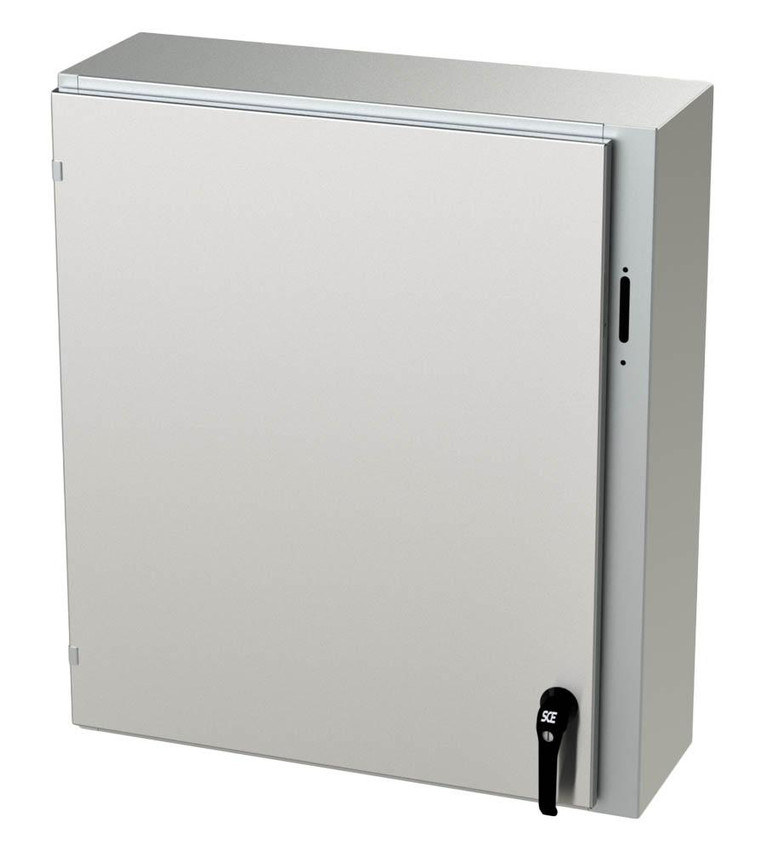

Enclosure (XEL SS6 LP), 36 x 31.38 x 10" HWD, 0.075" Stainless Steel 316, #4 Brushed Finish, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66, Enviroline Single Door Enclosure for Flange-Mounted Disconnects with SCE Door Hardware (316 Stainless Steel)
- Weight:
- 115.20 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.075 In. stainless steel Type 316/316L.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening.
- Pour in place oil & water resistant gasket
- Collar studs 3/8-16 provided for mounting optional panels.
- Holes provided in body for mounting disconnect operating handle and operating mechanism.
- Stainless steel concealed hinges.
- Doors are interchangeable and easily removed by pulling hinge pin.
- 3-point latching mechanism when door height is greater or equal to 40 inches, 2-point latching mechanism when door height is less than 40 inches.
- Latches are opened or closed with screwdriver (optional tamper-resistant inserts available).
- Mounting holes in back of enclosure.
- Mounting hardware, sealing washer and hole plug included.
- Ground studs on door and body.
- Black zinc die cast coinproof/padlocking handle.
- Removable print pocket.
