SCE-EXD18SS
Saginaw

SCE-EXD18SS

$2,326.71

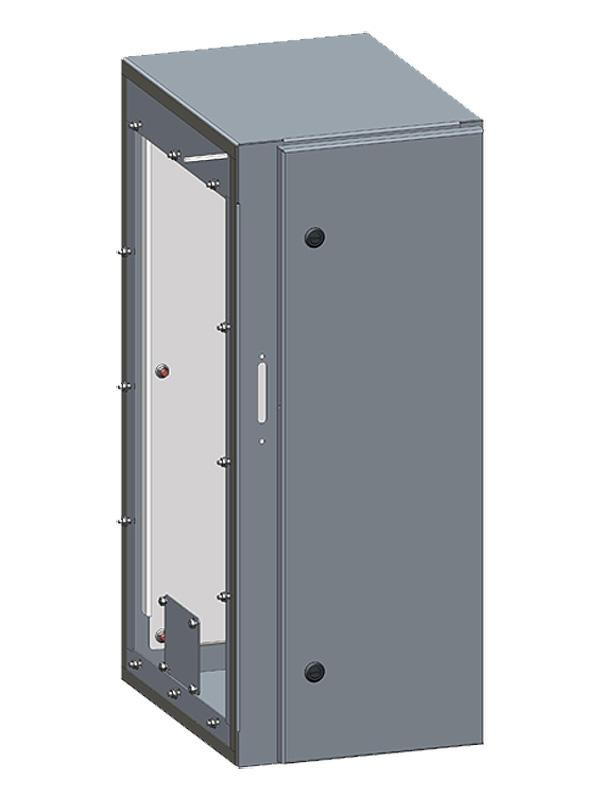

Enclosure SS XEL, 34.5x15x18", NEMA/UL 3R, 4, 4X, 12

Weight:
114.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Series Features Include:

  • 0.075” carbon steel/type 304 stainless steel.
  • Seams continuously welded and ground smooth.
  • Flange trough collar around all sides of door opening.
  • Pour in place oil & water resistant gasket
  • Collar studs provided for mounting panels.
  • 31in. H X 13in. W Galvanized Subpanel installed.
  • Concealed hinge.
  • Black quarter turn latches.
  • Latches are opened or closed with a screwdriver.
  • Mounting hardware included.
  • Mechanical interlock and hardware included.
  • Mechanical interlock activated by the External Disconnect prevents main door of the enclosure from being closed unless the EXD enclosure is first closed.
  • Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
  • Provision for 200 amp disconnect or less (Ref. D1 Cutout) - for use with Allen Bradley, Square D and Eaton (FHS) models only
