SCE-6PBSS

$280.53

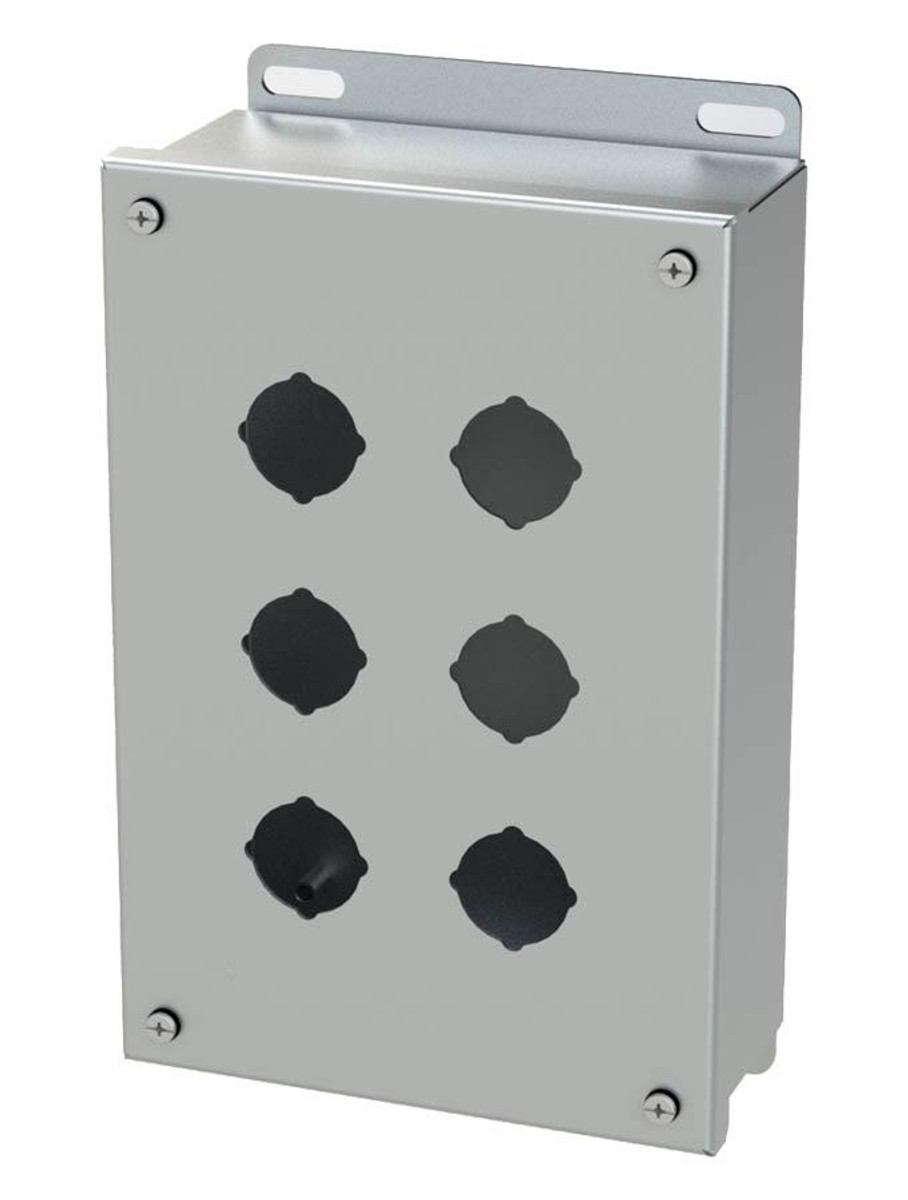

Pushbutton Enclosure (PB), Stainless Steel, 6 Hole, 9.50 x 6.25 x 3.00" HWD, NEMA/UL 4, 4X, 12, NEMA 13, IP66, #4 Brushed Finish, 30.5mm Pushbutton Enclosure (304 Stainless Steel) Series

SKU:: SCE-6PBSS
Weight:: 5.00 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Accessories

Description

Enclosure SS PB, 9.5x6.25x3", NEMA/UL 4, 4X, 12, NEMA 13, IP66

Series Features Include:

0.063 In. stainless steel type 304.
Seams continuously welded and ground smooth.
Captivated cover screws thread into sealed wells.
4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 in. (30.5 mm).
Pour in place oil & water resistant gasket.
Provisions for sub-panel.
Ground stud on door.
Bolt-on continuous hinge with stainless steel hinge pin.
Welded mounting provision top and bottom of back.

Read more about Enclosures here!

What to Consider When Buying an Enclosure

Accessories

Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.

Add Selection to Cart

Saginaw

SCE-6PBSS6

Pushbutton Enclosure (PB), Stainless Steel, 6 Hole, 9.50 x 6.25 x 3.00" HWD, NEMA/UL 4, 4X, 12, NEMA 13, IP66, #4 Brushed Finish, 30.5mm Pushbutton Enclosure (316 Stainless Steel) Series

$349.21

Select

Saginaw

SCE-6PBSSI

Pushbutton Enclosure (PB), Stainless Steel, 6 Hole, 9.50 x 6.25 x 3.00" HWD, NEMA/UL 4, 4X, 12, NEMA 13, IP66, #4 Brushed Finish, 22.5mm Pushbutton (PB) Enclosure (304 Stainless Steel) Series

$280.53

Select

Saginaw

SCE-6PBSS6I

Pushbutton Enclosure (PB), Stainless Steel, 6 Hole, 9.50 x 6.25 x 3.00" HWD, NEMA/UL 4, 4X, 12, NEMA 13, IP66, #4 Brushed Finish, 22.5mm Pushbutton Enclosure (316 Stainless Steel) Series

$349.21

Select
