SCE-L9188ELJSS

SCE-L9188ELJSS

$783.40

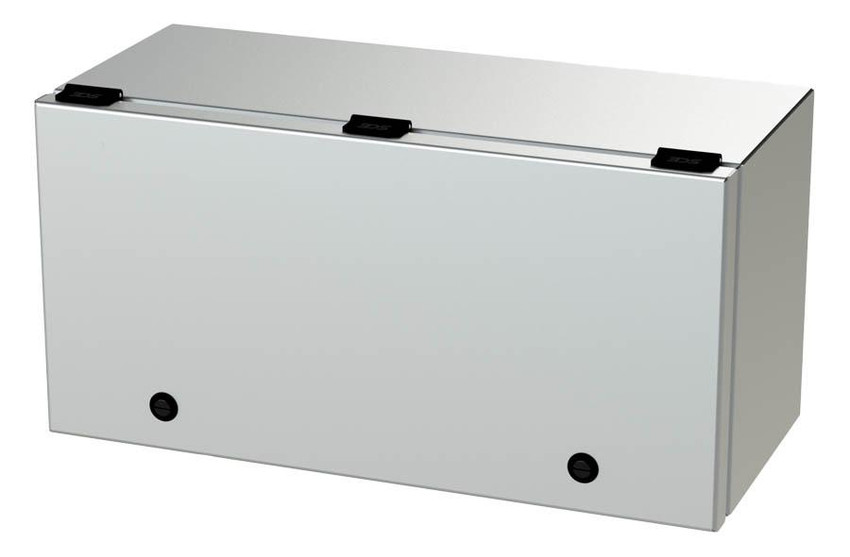

Trough Enclosure (ELJ SS), 9 x 18 x 8" HWD, 0.063" Stainless Steel 304, #4 Brushed Finish, with Mounting Foot Kit SCE-ELJMFK, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66, Enviroline Junction Enclosure (304 Stainless Steel)

Weight:
15.88 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

  • Modular enclosures
    • Endless combinations, multiple door arrangements, up to ten
    • Modular units work around each other for users to interact with them and equipment they hold
  • Wall mount enclosures
    • Generally the most expensive group
    • Indoor or outdoor options
    • Available as pushbutton enclosures up to large electrical requirements
  • Free-standing and floor-mounted enclosures
    • Mostly used outdoors and needing multi-door
    • Generally used for a large amount of electical components, single or multiple door
  • Non-Metallic enclosures
    • Includes fiberglass, polycarbonate
    • Used to protect from corrosion, UV rays or very damp conditions
    • Allows windowed or windowless
    • Includes pushbutton, junction, wall-mount and many other options
  • Operator system enclosures
    • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Features Include:

  • Designed to house electrical controls, instruments and components used in an indoor or outdoor environment to provide a degree of protection for the equipment inside the enclosure against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow)
  • 0.063 In. stainless steel Type 304
  • Seams continuously welded and ground smooth
  • Flange trough collar around all sides of door opening
  • Pour in place oil & water resistant gasket
  • 10-32 Standoffs provided for mounting optional panels
  • Removable hinges
  • Doors open 180 degrees
  • Black mini quarter turn latches
  • Latches are opened or closed with a screwdriver
  • Sealing washers and hole plugs included
  • Ground stud on door & body
  • Mounting feet included
  • Height: 9.00"
  • Width: 18.00"
  • Depth: 8.00"
  • Est. Ship Weight: 13.23 lbs

*Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
