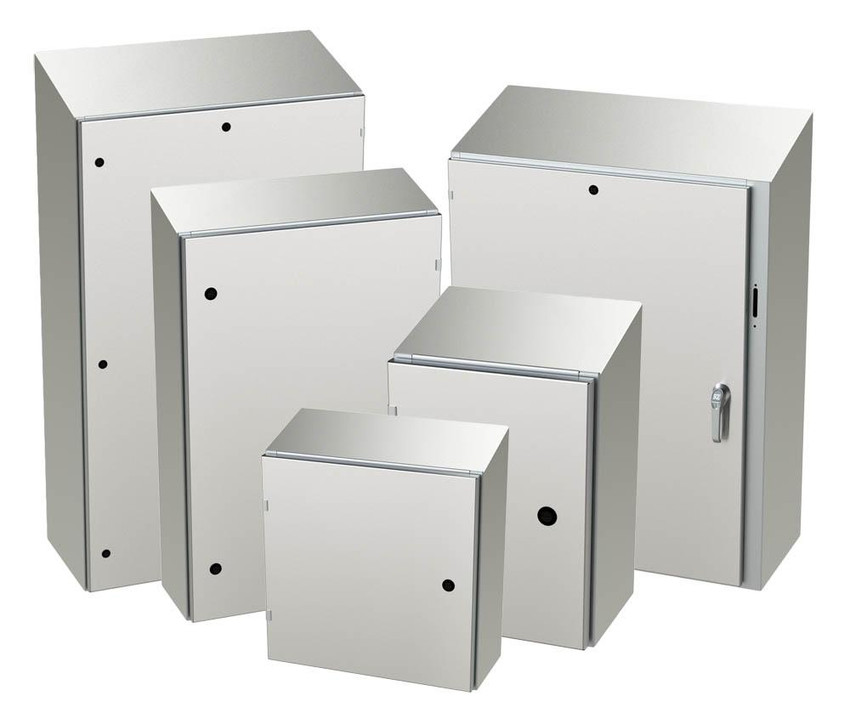

Enclosure (EL SS ST) with Sloping Top, 24 x 24 x 16" HWD, 0.075" Stainless Steel 304, #4 Brushed Finish, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66, Enviroline Sloping Top Single Door Enclosure (Stainless Steel 304)
SKU:
SCE-24EL2416SSST
Weight:
102.00 LBS
Minimum Purchase:
1 unit
Please note: if this item is unable to ship UPS Ground it will not qualify for free shipping. You will be advised before your order is processed if it needs to ship freight. Thank you!
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
Modular enclosures
Endless combinations, multiple door arrangements, up to ten
Modular units work around each other for users to interact with them and equipment they hold
Wall mount enclosures
Generally the most expensive group
Indoor or outdoor options
Available as pushbutton enclosures up to large electrical requirements
Free-standing and floor-mounted enclosures
Mostly used outdoors and needing multi-door
Generally used for a large amount of electical components, single or multiple door
Non-Metallic enclosures
Includes fiberglass, polycarbonate
Used to protect from corrosion, UV rays or very damp conditions
Allows windowed or windowless
Includes pushbutton, junction, wall-mount and many other options
Operator system enclosures
Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
0.075 In. stainless steel Type 304.
Seams continuously welded and ground smooth.
Flange trough collar around all sides of door opening.
15 degree sloping top.
Collar studs 3/8-16 provided for mounting optional panels.
Mounting holes in back of the enclosure for wall mounting.
Mounting hardware, sealing washers and hole plugs included.
Stainless Steel Concealed hinges.
Removable and interchangeable doors.
Black quarter turn latches.
Latches are opened or closed with a screwdriver (optional tamper resistant latches are available)
Removable print pocket furnished if height and width of enclosure is greater than 12 inches.
Pour in place oil & water resistant gasket
Ground stud on door and body.
Provision for Lifting Lugs will be included on enclosures with Height >48 In. and with Depth >16 In. The Lifting Lug assembly will be included with the enclosure bolt pack.
