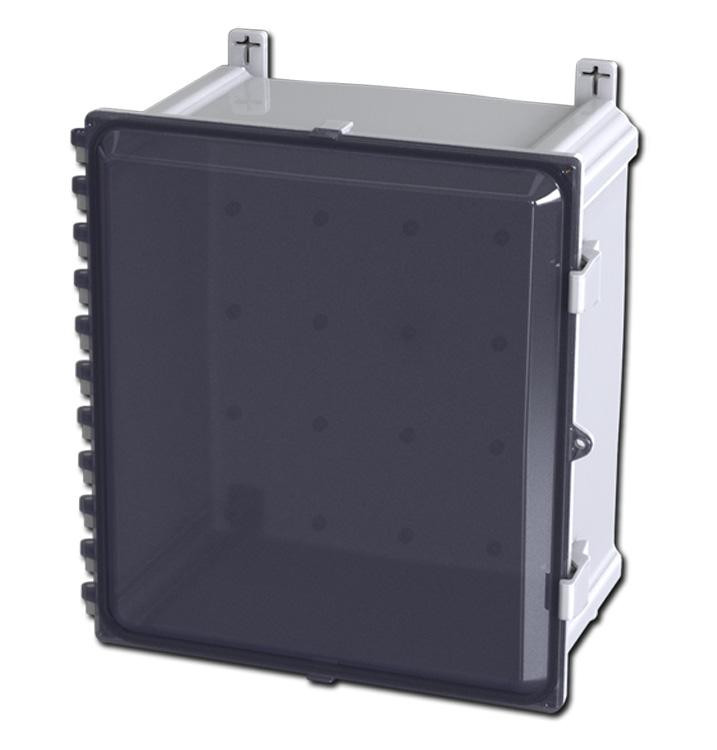

SCE-1614PCW

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

• Modular enclosures
• • Endless combinations, multiple door arrangements, up to ten
  • Modular units work around each other for users to interact with them and equipment they hold
• Wall mount enclosures

  • Generally the most expensive group
  • Indoor or outdoor options
  • Available as pushbutton enclosures up to large electrical requirements
• Free-standing and floor-mounted enclosures
  • Mostly used outdoors and needing multi-door
  • Generally used for a large amount of electical components, single or multiple door
• Non-Metallic enclosures
  • Includes fiberglass, polycarbonate
  • Used to protect from corrosion, UV rays or very damp conditions
  • Allows windowed or windowless
  • Includes pushbutton, junction, wall-mount and many other options
• Operator system enclosures
  • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Features Include:

• Impact Resistant Polycarbonate
• Opaque cover
• Brass inserts for securing mounting feet
• Polycarbonate external mounting feet included
• Oil-resistant door gasket
• Polycarbonate quick release latches
• Polycarbonate hinges
• Polycarbonate hasp and staple for padlocking
• 10-32 standoffs provided for mounting optional panels
• Multiple bosses for easy installation of devices and DIN rails
• Height: 17.65"
• Width: 16.68"
• Depth: 9.98"
• Est. Ship Weight: 10.00 lbs
