BC-AGS-193818

BC-AGS-193818

Alt: S-Type Series

$39.51

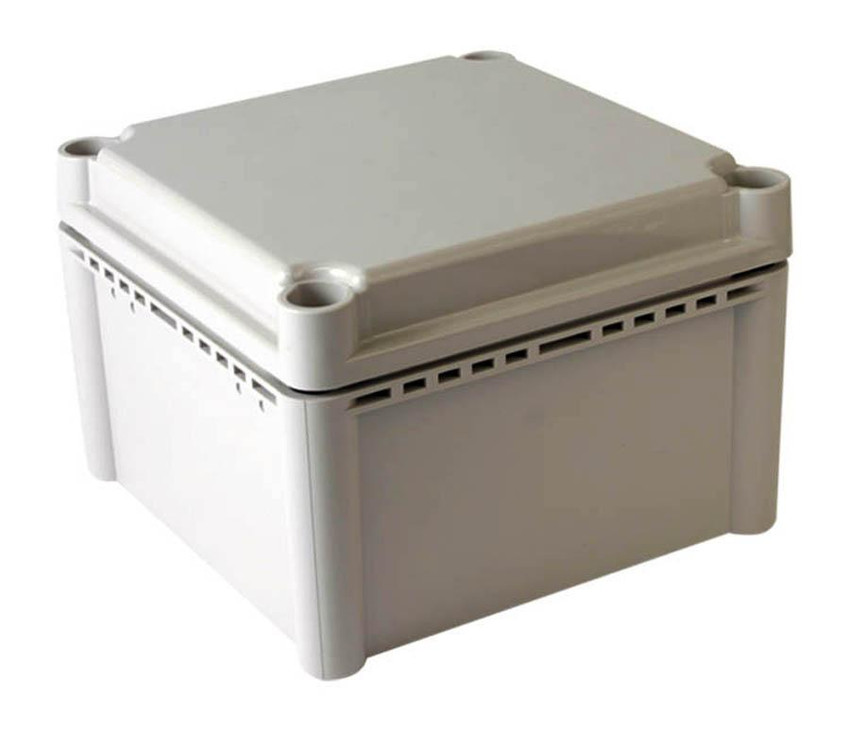

Enclosure Lift Off Cover ABS Gray 7.48x14.96x7.09", Use Back Panel BC-1938(ST or P), NEMA 4X/6 IP66/67

Weight:
3.90 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
These enclosures can generally ship in 1 to 2 days!
Description

Boxco offers a number of cost-effective enclosure options:

P-Type - hinge and latch type, non metallic

  • Molded hinge and SUS latch
  • Dust/water proof - IP66/67, NEMA 4X/6
  • Available in four options:
    • ABS/gray cover: -AGP
    • ABS/transparent cover: -ATP
    • Polycarbonate/gray cover: -CGP
    • Polycarbonate/transparent cover: -CTP
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Mounting brackets, draw latch lock and waterproof lock available
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

S-Type - screw bolt type, non metallic

  • Lift off screw cover and smooth side walls
  • IP66/67, NEMA 4X/6
  • Available in four options:
    • ABS/gray cover: -AGS
    • ABS/transparent cover: -ATS
    • Polycarbonate/gray cover: -CGS
    • Polycarbonate/transparent cover: -CTS
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Mounting brackets, draw latch lock and waterproof lock available
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad

  • Dust/water proof - IP66/67, NEMA 4X/6
  • Available in four options:
    • ABS/gray cover: -AGM
    • ABS/transparent cover: -ATM
    • Polycarbonate/gray cover: -CGM
    • Polycarbonate/transparent cover: -CTM
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

Q-Type - hinge and latch type, all plastic (hinge, latch)

  • Plastic hinge, plastic latch
  • IP67
  • Available in four options:
    • ABS/gray cover: -AGQ
    • ABS/transparent cover: -ATQ
    • Polycarbonate/gray cover: -CGQ
    • Polycarbonate/transparent cover: -CTQ
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Mounting brackets, draw latch lock and waterproof lock available
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

Features Include:

Protection Level

  • IP66/67, IK07/08

Technical

  • Gray or transparent cover, Steel and Plastic Back panels are available
  • Smooth sidewalls
  • Standard or quick turn screws
  • Integrated cover retainer

Certification

  • UL508 on Polycarbonate products

Temperature range

  • ABS: -40°C to 86°C (-40°F to 185°F)
  • Polycarbonate: -40°C to 120°C (-40°F to 248°F)
  • UL94-HB(Transparent) Non-Flammable
  • UL94-V-0~5VA(Gray) Non-Flammable
