Saginaw
SCE-ASPB-09
Oil Tight Hole Seal (Plug), 1.75" (44mm) Diameter x 0.5", Maximum Hole Size: 1.25" (31.75mm) Diameter, Steel - ANSI-61 Gray, NEMA/UL 3R, 4, 4X, 12, IP56
$5.75
Product image is representative only, please verify specifications.
SCE-4PBX
$84.89

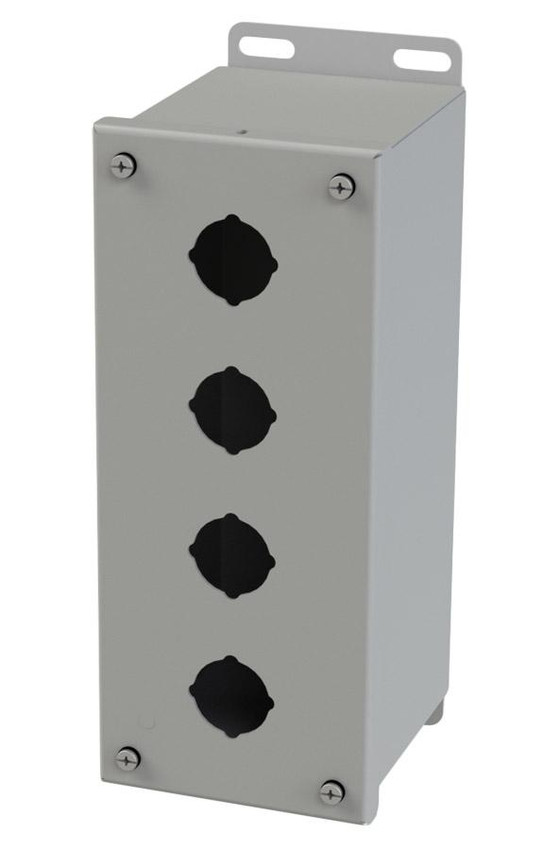

Pushbutton Enclosure (PBX), 4 Hole, 10.00 x 4.00 x 4.75" HWD, NEMA/UL 4, 12, NEMA 13, IP66, ANSI-61 Gray, 30.5mm (0.063" Carbon Steel)
- Weight:
- 6.00 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Specifications
Enclosure Type
Pushbutton Enclosure
Material
Carbon Steel
All - Specific Ratings
IP66, NEMA 4 , NEMA 12, NEMA 13
Series
Pushbutton Enclosure
Warranty
2 Years
Weight
6
Width
4"
Height
10"
Length/Depth
4.75"
Features Include:
- 0.063 In. carbon steel
- Continuously welded seams
- Captivated cover screws thread into sealed wells
- 4-way standard pushbutton holes accept all brands of oil-tight pushbuttons, switches, and pilot lights. Hole diameter is 1.20 In. (30.5 mm)
- Immediate removal of cover is still permitted
- Pour in place oil & water resistant gasket
- Welded mounting provision top and bottom of back
- Height: 10.00"
- Width: 4.00"
- Depth: 4.75"
- Est. Ship Weight: 5.00 lbs
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
