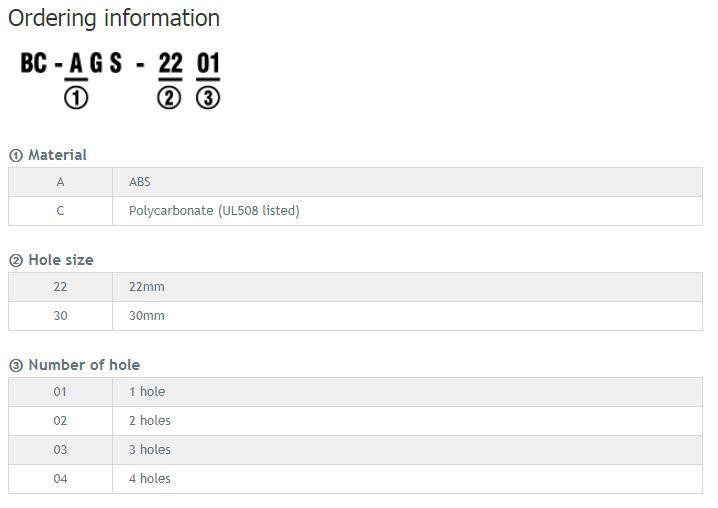

BC-AGS-3004

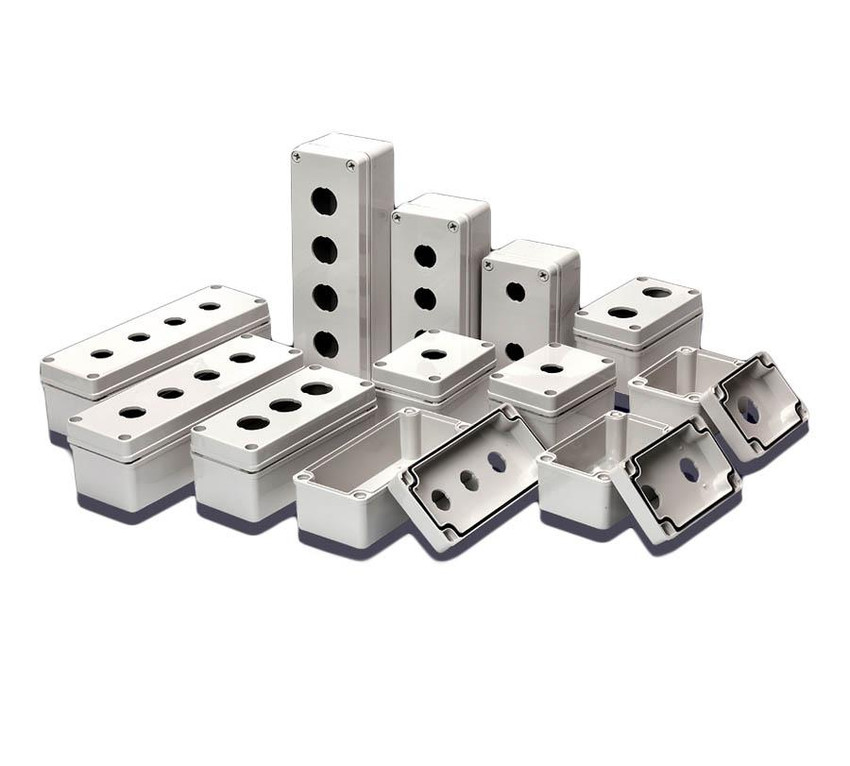

Boxco offers a number of cost-effective enclosure options:

P-Type - hinge and latch type, non metallic

• Molded hinge and SUS latch
• Dust/water proof - IP66/67, NEMA 4X/6
• Available in four options:
• ABS/gray cover: -AGP
• ABS/transparent cover: -ATP
• Polycarbonate/gray cover: -CGP
• Polycarbonate/transparent cover: -CTP
• Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
• Mounting brackets, draw latch lock and waterproof lock available
• Polycarbonate models have excellent UV resistance
• RoHS, UL CE

S-Type - screw bolt type, non metallic

• Lift off screw cover and smooth side walls
• IP66/67, NEMA 4X/6
• Available in four options:
• ABS/gray cover: -AGS
• ABS/transparent cover: -ATS
• Polycarbonate/gray cover: -CGS
• Polycarbonate/transparent cover: -CTS
• Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
• Mounting brackets, draw latch lock and waterproof lock available
• Polycarbonate models have excellent UV resistance
• RoHS, UL CE

M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad

• Dust/water proof - IP66/67, NEMA 4X/6
• Available in four options:
• • ABS/gray cover: -AGM
  • ABS/transparent cover: -ATM
  • Polycarbonate/gray cover: -CGM
  • Polycarbonate/transparent cover: -CTM
• Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
• Polycarbonate models have excellent UV resistance
• RoHS, UL CE

Q-Type - hinge and latch type, all plastic (hinge, latch)

• Plastic hinge, plastic latch
• IP67
• Available in four options:
• • ABS/gray cover: -AGQ
  • ABS/transparent cover: -ATQ
  • Polycarbonate/gray cover: -CGQ
  • Polycarbonate/transparent cover: -CTQ
• Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
• Mounting brackets, draw latch lock and waterproof lock available
• Polycarbonate models have excellent UV resistance
• RoHS, UL CE

Features Include:

Protection Level

• IP66/67, IK07/08

Technical

• Smooth sidewalls
• Standard or quick turn screws
• Integrated cover retainer

Certification

• UL508 on Polycarbonate products

Temperature range

• ABS: -40°C to 86°C (-40°F to 185°F)
• Polycarbonate: -40°C to 120°C (-40°F to 248°F)
• UL94-V-0~5VA(Gray) Non-Flammable
