Product image is representative only, please verify specifications.

SCE-48H3610SSLP

$2,532.85

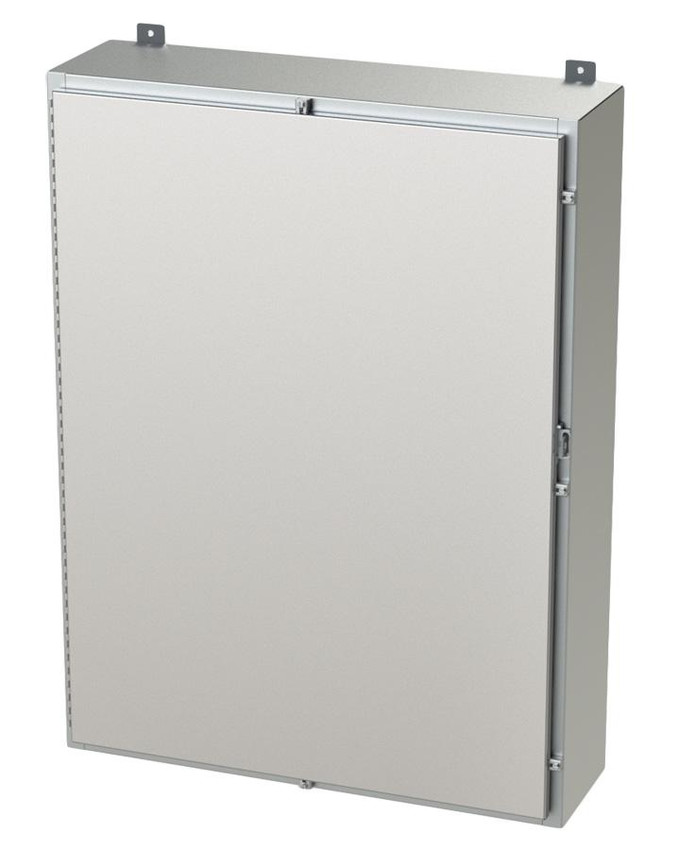

Enclosure (NEMA 4X LP), Single Door, 48 x 36 x 10" HWD, Wall Mount, 0.075" Stainless Steel 304, #4 Brushed Finish, NEMA/UL 3R, 4, 4X, 12, NEMA 13, IP66, Clamp Fastened Single Door Enclosure (304 Stainless Steel)

SKU:: SCE-48H3610SSLP
Weight:: 158.00 LBS
Minimum Purchase:: 1 unit

Current Stock:

Quantity:

Current Stock:

Adding to cart… The item has been added

Description
Specifications
Downloads
Accessories
Blogs

Description

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

Modular enclosures
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Specifications

Enclosure Type Hinge/Latch

Material Stainless Steel

All - Specific Ratings IP66, NEMA 3R, NEMA 4 , NEMA 4X, NEMA 12, NEMA 13

Series NEMA 4X LP Enclosure

Warranty 2 Years

Height 48"

Length/Depth 10"

Weight 158.004

Width 36"

Series Features Include:

0.075 In. stainless steel Type 304.
Continuously welded seams ground smooth.
Flange trough collar around all sides of door opening.
Oil-resistant door gasket.
Collar studs provided for mounting optional subpanels.
Hasp and staple for padlocking.
Stainless steel continuous hinge.
Removable print pocket furnished if height and width of enclosure is greater than 12 Inches.
Ground stud on door.
Stainless steel clamps on three sides door when greater than 30 inch wide.
Mounting provision top and bottom of back.
