SCE-36H3612SS6LP

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

• Modular enclosures
• • Endless combinations, multiple door arrangements, up to ten
  • Modular units work around each other for users to interact with them and equipment they hold
• Wall mount enclosures

  • Generally the most expensive group
  • Indoor or outdoor options
  • Available as pushbutton enclosures up to large electrical requirements
• Free-standing and floor-mounted enclosures
  • Mostly used outdoors and needing multi-door
  • Generally used for a large amount of electical components, single or multiple door
• Non-Metallic enclosures
  • Includes fiberglass, polycarbonate
  • Used to protect from corrosion, UV rays or very damp conditions
  • Allows windowed or windowless
  • Includes pushbutton, junction, wall-mount and many other options
• Operator system enclosures
  • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

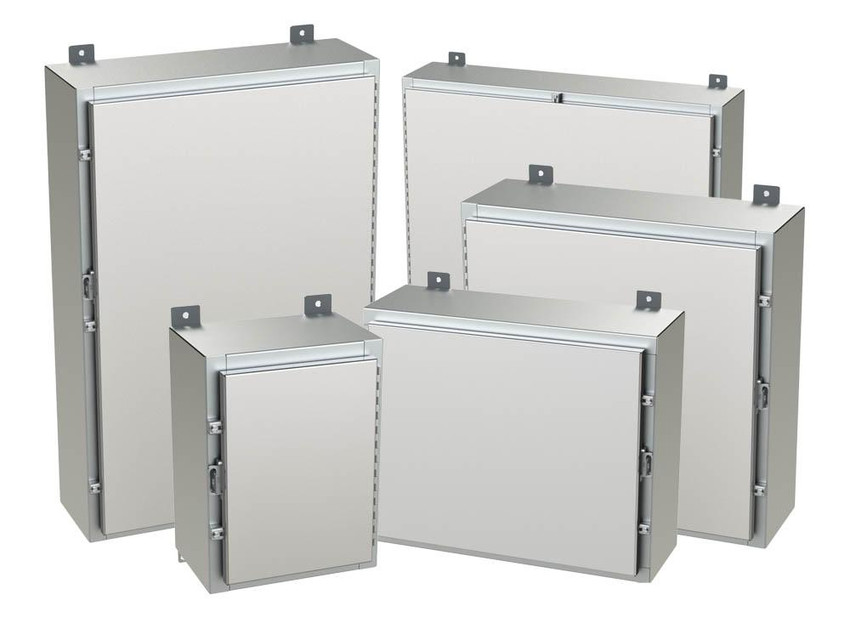

Series Features Include:

• 0.075 In. stainless steel Type 304.
• Continuously welded seams ground smooth.
• Flange trough collar around all sides of door opening.
• Oil-resistant door gasket.
• Collar studs provided for mounting optional subpanels.
• Hasp and staple for padlocking.
• Stainless steel continuous hinge.
• Removable print pocket furnished if height and width of enclosure is greater than 12 Inches.
• Ground stud on door.
• Stainless steel clamps on three sides door when greater than 30 inch wide.
• Welded mounting provision top and bottom of back.
