$8.19
BC-CGM-182507
Alt: M-Type Series
$32.04

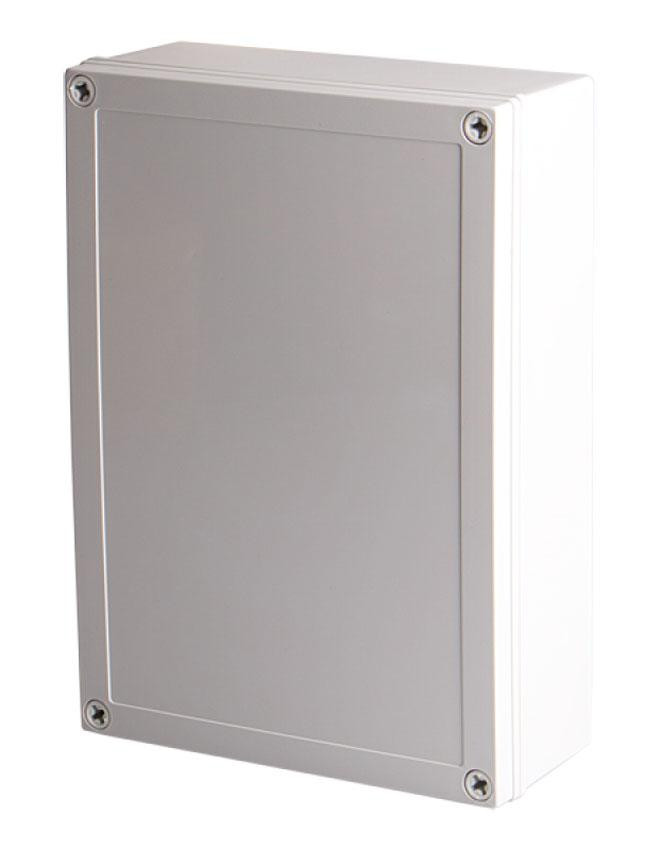

Enclosure Lift Off Cover, PC Gray 7.09×10.04×2.95, Use Back Panel BC-1825ST NEMA 4X/6, IP66/67
- Weight:
- 2.40 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal Enclosure Solution
Choose the right enclosure with expert recommendations on compatible accessories like subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
Boxco offers a number of cost-effective enclosure options:
P-Type - hinge and latch type, non metallic
- Molded hinge and SUS latch
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGP
- ABS/transparent cover: -ATP
- Polycarbonate/gray cover: -CGP
- Polycarbonate/transparent cover: -CTP
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
S-Type - screw bolt type, non metallic
- Lift off screw cover and smooth side walls
- IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGS
- ABS/transparent cover: -ATS
- Polycarbonate/gray cover: -CGS
- Polycarbonate/transparent cover: -CTS
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
-
- ABS/gray cover: -AGM
- ABS/transparent cover: -ATM
- Polycarbonate/gray cover: -CGM
- Polycarbonate/transparent cover: -CTM
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Q-Type - hinge and latch type, all plastic (hinge, latch)
- Plastic hinge, plastic latch
- IP67
- Available in four options:
-
- ABS/gray cover: -AGQ
- ABS/transparent cover: -ATQ
- Polycarbonate/gray cover: -CGQ
- Polycarbonate/transparent cover: -CTQ
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Specifications
Enclosure Type
Lift Off Cover
Material
Polycarbonate
All - Specific Ratings
IP66, IP67, NEMA 4X
Series
M-Type Series
Warranty
3 Years
Alternate Part Number
M-Type Series
Weight
2.4
Features Include:
Protection Level
- IP66/67, IK07/08
Technical
- Lower center surface for membrane keyboard attachment
- Gray or transparent cover
- Standard or Quick turn screws
- Lower cover + tall base
Certifications
- UL508 on Polycarbonate products
Temperature range
- ABS: -40°C to 86°C (-40°F to 185°F)
- Polycarbonate: -40°C to 120°C (-40°F to 248°F)
- UL94-HB(Transparent) Non-Flammable
- UL94-V-0~5VA(Gray) Non-Flammable
Accessories
