BC-CGP-506025
Alt: P-Type Series
$337.35

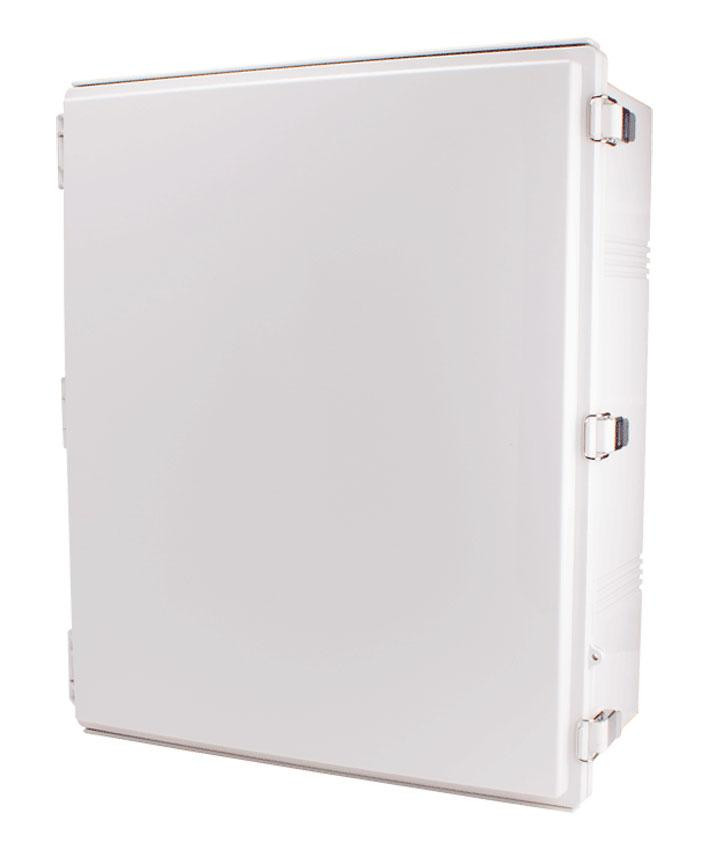

Enclosure, Hinge/Latch, PC Gray 20.87×24.80×10.04", Use Back Panel BC-5060(ST or P) NEMA 4X/6X IP66/67
- Weight:
- 19.44 LBS
- Minimum Purchase:
- 1 unit
Easily Find Your Enclosure Solution
Get expert guidance to select the right enclosure and compatible accessories, including subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
Boxco offers a number of cost-effective enclosure options:
P-Type - hinge and latch type, non metallic
- Molded hinge and SUS latch
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGP
- ABS/transparent cover: -ATP
- Polycarbonate/gray cover: -CGP
- Polycarbonate/transparent cover: -CTP
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
S-Type - screw bolt type, non metallic
- Lift off screw cover and smooth side walls
- IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGS
- ABS/transparent cover: -ATS
- Polycarbonate/gray cover: -CGS
- Polycarbonate/transparent cover: -CTS
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
-
- ABS/gray cover: -AGM
- ABS/transparent cover: -ATM
- Polycarbonate/gray cover: -CGM
- Polycarbonate/transparent cover: -CTM
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Q-Type - hinge and latch type, all plastic (hinge, latch)
- Plastic hinge, plastic latch
- IP67
- Available in four options:
-
- ABS/gray cover: -AGQ
- ABS/transparent cover: -ATQ
- Polycarbonate/gray cover: -CGQ
- Polycarbonate/transparent cover: -CTQ
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Specifications
Enclosure Type
Hinge/Latch
Material
Polycarbonate
All - Specific Ratings
IP66, IP67, NEMA 4X
Series
P-Type Series
Warranty
3 Years
Alternate Part Number
P-Type Series
Weight
19.44
Features Include:
Protection Level
- IP66/67, IK07/08, NEMA 4X
Technical
- Molded hinge & SUS latch type
- Wall mount brackets are available
- Gray or transparent cover, Steel and Plastic Back panels are available
- Built-in Key ring
Certifications
- UL508 on Polycarbonate products
Temperature range
- ABS: -40°C to 86°C (-40°F to 185°F)
- Polycarbonate: -40°C to 120°C (-40°F to 248°F)
- UL94-HB(Transparent) Non-Flammable
- UL94-V-0~5VA(Gray) Non-Flammable
