$8.19
BC-CTP-162110
Alt: P Series Molded Hinge/Stainless Steel Latch Non-Metallic Enclosure
$31.88

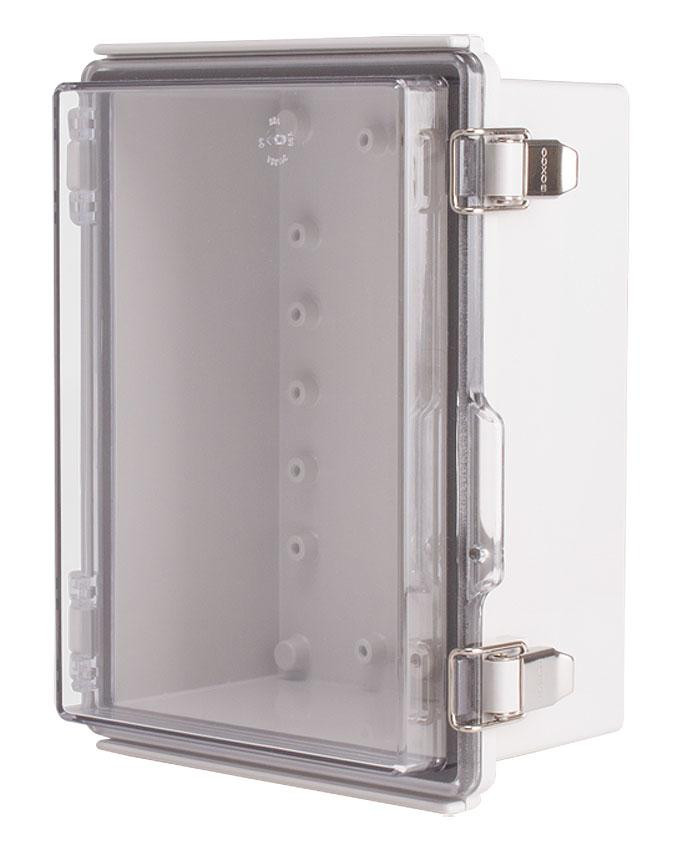

Enclosure, P Type, Molded Hinge/Stainless Steel Latch, Gray Polycarbonate with Transparent Cover, 160 x 210 x 100mm; 6.30 x 8.27 x 3.94", NEMA 4X, 6X, IP66/67, UL508A, Use Back Panel BC-1520ST or BC-1520P, Mounting Bracket BC-B40, P Series
- Weight:
- 1.92 LBS
- Minimum Purchase:
- 1 unit
Description
Boxco offers a number of cost-effective enclosure options:
P-Type - hinge and latch type, non metallic
- Molded hinge and SUS latch
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGP
- ABS/transparent cover: -ATP
- Polycarbonate/gray cover: -CGP
- Polycarbonate/transparent cover: -CTP
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
S-Type - screw bolt type, non metallic
- Lift off screw cover and smooth side walls
- IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGS
- ABS/transparent cover: -ATS
- Polycarbonate/gray cover: -CGS
- Polycarbonate/transparent cover: -CTS
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
-
- ABS/gray cover: -AGM
- ABS/transparent cover: -ATM
- Polycarbonate/gray cover: -CGM
- Polycarbonate/transparent cover: -CTM
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Q-Type - hinge and latch type, all plastic (hinge, latch)
- Plastic hinge, plastic latch
- IP67
- Available in four options:
-
- ABS/gray cover: -AGQ
- ABS/transparent cover: -ATQ
- Polycarbonate/gray cover: -CGQ
- Polycarbonate/transparent cover: -CTQ
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Features Include:
- Molded hinge & latch type
- Non-flammable for polycarbonate & ABS material
- Available clear & light grey color cover
- Available mounting brackets, steel & plastic back panels, draw latch lock & water proof lock
- UV resistance (outside application) for polycarbonate material
Protection Level:
- Water Proof: IP66/67, NEMA 4X/6X
- Impact Test: IK07/08
Temperature Range:
- ABS: -40°C to 86°C (-40°F to 185°F)
- UL94-HB Non-Flammable
- Polycarbonate: -40°C to 120°C (-40°F to 248°F)
- UL94-HB(transparent) Non-flammable
- UL94-V-0~5VA(Grey) Non-flammable
Need More Information?
Accessories
Available Now!
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$17.82
Boxco
BC-B40
Wall Mounting Bracket, Small Size, SS SUS 304 2T, Please Note This is One Bracket, Please Order The Quantity You Need to Hang Your Enclosure
$1.04
Boxco
BC-1520P
Back Panel for Enclosure: Plastic 3mm, Use BC-B40 Wall Mounting Bracket (Need to Order Separately)
$2.25
Boxco
BC-1520ST
Back Panel for Enclosure: Steel 1.6mm, Use BC-B40 Wall Mounting Bracket (Need to Order Separately)
$5.13
