BC-CTP-608028
Alt: P Series Molded Hinge/Stainless Steel Latch Non-Metallic Enclosure
$447.69

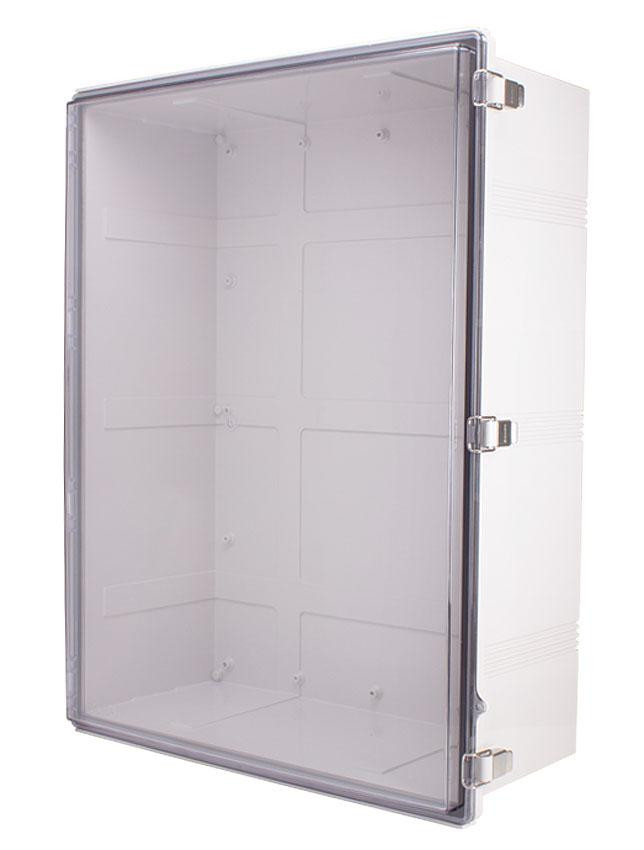

Enclosure, Hinge/Latch, PC Clear 24.80×32.68×11.22", Use Back Panel BC-6080 ST, NEMA 4X/6X IP66/67
- Weight:
- 33.53 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal Enclosure Solution
Choose the right enclosure with expert recommendations on compatible accessories like subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
Boxco offers a number of cost-effective enclosure options:
P-Type - hinge and latch type, non metallic
- Molded hinge and SUS latch
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGP
- ABS/transparent cover: -ATP
- Polycarbonate/gray cover: -CGP
- Polycarbonate/transparent cover: -CTP
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
S-Type - screw bolt type, non metallic
- Lift off screw cover and smooth side walls
- IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGS
- ABS/transparent cover: -ATS
- Polycarbonate/gray cover: -CGS
- Polycarbonate/transparent cover: -CTS
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
-
- ABS/gray cover: -AGM
- ABS/transparent cover: -ATM
- Polycarbonate/gray cover: -CGM
- Polycarbonate/transparent cover: -CTM
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Q-Type - hinge and latch type, all plastic (hinge, latch)
- Plastic hinge, plastic latch
- IP67
- Available in four options:
-
- ABS/gray cover: -AGQ
- ABS/transparent cover: -ATQ
- Polycarbonate/gray cover: -CGQ
- Polycarbonate/transparent cover: -CTQ
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Specifications
Alternate Part Number
P Series Molded Hinge/Stainless Steel Latch Non-Metallic Enclosure
Enclosure Type
Hinge/Latch
Material
Polycarbonate
All - Specific Ratings
IP66, IP67, NEMA 4X
Series
P Series
Warranty
3 Years
Weight
33.5255
Features Include:
- Molded hinge & latch type
- Non-flammable for polycarbonate & ABS material
- Available clear & light grey color cover
- Available mounting brackets, steel & plastic back panels, draw latch lock & water proof lock
- UV resistance (outside application) for polycarbonate material
Protection Level:
- Water Proof: IP66/67, NEMA 4X/6X
- Impact Test: IK07/08
Temperature Range:
- ABS: -40°C to 86°C (-40°F to 185°F)
- UL94-HB Non-Flammable
- Polycarbonate: -40°C to 120°C (-40°F to 248°F)
- UL94-HB(transparent) Non-flammable
- UL94-V-0~5VA(Grey) Non-flammable
