BC-AGP-354520
Alt: P Series Molded Hinge/Stainless Steel Latch Non-Metallic Enclosure
$78.35

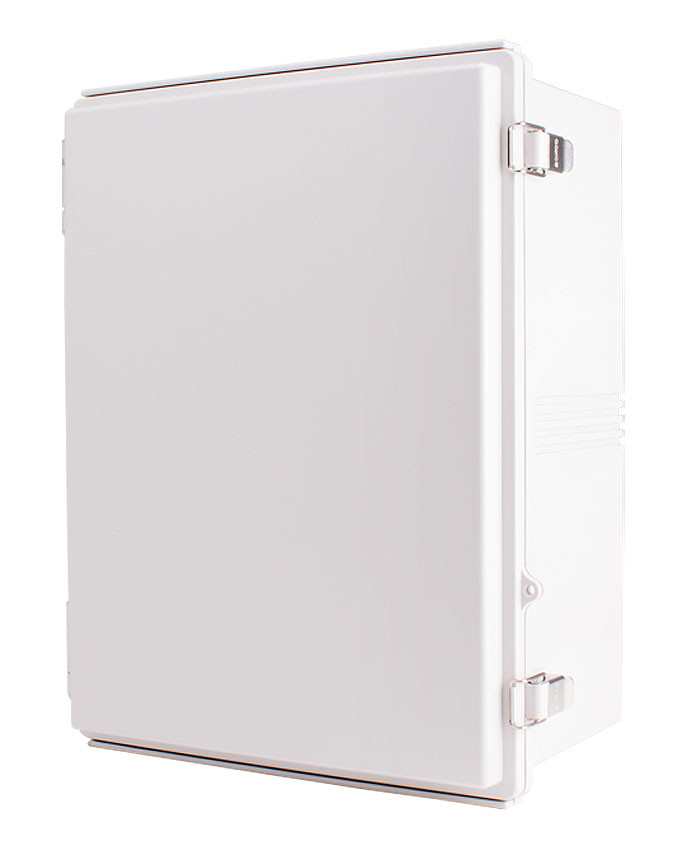

Enclosure, P Type, Molded Hinge/Stainless Steel Latch, ABS Plastic, Gray Cover, 350 x 450 x 200mm; 13.78 x 17.72 x 7.87", NEMA 4X, IP66/67, Use Back Panel BC-3545 (ST or P), Mounting Bracket BC-B50, P Series Non-Metallic Enclosure
- Weight:
- 7.86 LBS
- Minimum Purchase:
- 1 unit
Description
Boxco offers a number of cost-effective enclosure options:
P-Type - hinge and latch type, non metallic
- Molded hinge and SUS latch
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGP
- ABS/transparent cover: -ATP
- Polycarbonate/gray cover: -CGP
- Polycarbonate/transparent cover: -CTP
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
S-Type - screw bolt type, non metallic
- Lift off screw cover and smooth side walls
- IP66/67, NEMA 4X/6
- Available in four options:
- ABS/gray cover: -AGS
- ABS/transparent cover: -ATS
- Polycarbonate/gray cover: -CGS
- Polycarbonate/transparent cover: -CTS
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad
- Dust/water proof - IP66/67, NEMA 4X/6
- Available in four options:
-
- ABS/gray cover: -AGM
- ABS/transparent cover: -ATM
- Polycarbonate/gray cover: -CGM
- Polycarbonate/transparent cover: -CTM
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Q-Type - hinge and latch type, all plastic (hinge, latch)
- Plastic hinge, plastic latch
- IP67
- Available in four options:
-
- ABS/gray cover: -AGQ
- ABS/transparent cover: -ATQ
- Polycarbonate/gray cover: -CGQ
- Polycarbonate/transparent cover: -CTQ
- Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
- Mounting brackets, draw latch lock and waterproof lock available
- Polycarbonate models have excellent UV resistance
- RoHS, UL CE
Features Include:
Protection Level
- IP66/67, IK07/08, NEMA 4X
Technical
- Molded hinge & SUS latch type
- Wall mount brackets are available
- Gray or transparent cover, Steel and Plastic Back panels are available
- Built-in Key ring
Certifications
- UL508 on Polycarbonate products
Temperature range
- ABS: -40°C to 86°C (-40°F to 185°F)
- Polycarbonate: -40°C to 120°C (-40°F to 248°F)
- UL94-HB(Transparent) Non-Flammable
- UL94-V-0~5VA(Gray) Non-Flammable
