BC-ATP-406023

BC-ATP-406023

Alt: P Series Molded Hinge/Stainless Steel Latch Non-Metallic Enclosure

$129.92

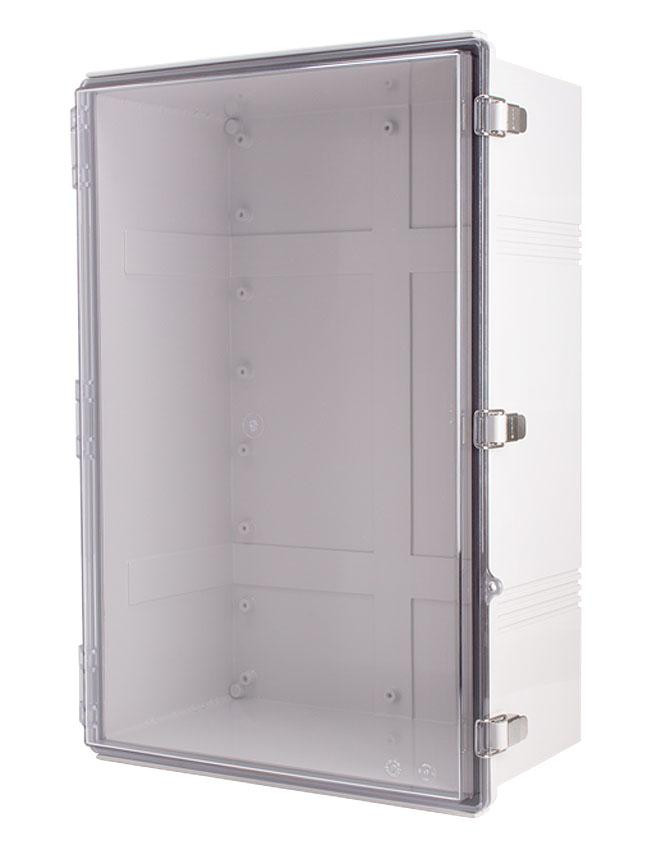

Enclosure, P Type, Molded Hinge/Stainless Steel Latch, ABS Plastic, Transparent Cover, 400 x 600 x 230mm; 15.75x23.62x9.06", NEMA 4X, IP66/67, Use Back Panel BC-4060 (ST or P), Mounting Bracket BC-B60, P Series Non-Metallic Enclosure

Weight:
12.01 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
These enclosures can generally ship in 1 to 2 days!
Description

Boxco offers a number of cost-effective enclosure options:

P-Type - hinge and latch type, non metallic

  • Molded hinge and SUS latch
  • Dust/water proof - IP66/67, NEMA 4X/6
  • Available in four options:
    • ABS/gray cover: -AGP
    • ABS/transparent cover: -ATP
    • Polycarbonate/gray cover: -CGP
    • Polycarbonate/transparent cover: -CTP
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Mounting brackets, draw latch lock and waterproof lock available
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

S-Type - screw bolt type, non metallic

  • Lift off screw cover and smooth side walls
  • IP66/67, NEMA 4X/6
  • Available in four options:
    • ABS/gray cover: -AGS
    • ABS/transparent cover: -ATS
    • Polycarbonate/gray cover: -CGS
    • Polycarbonate/transparent cover: -CTS
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Mounting brackets, draw latch lock and waterproof lock available
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

M-Type - screw bolt type, non-metallic w/ lower center space for membrane keypad

  • Dust/water proof - IP66/67, NEMA 4X/6
  • Available in four options:
    • ABS/gray cover: -AGM
    • ABS/transparent cover: -ATM
    • Polycarbonate/gray cover: -CGM
    • Polycarbonate/transparent cover: -CTM
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

Q-Type - hinge and latch type, all plastic (hinge, latch)

  • Plastic hinge, plastic latch
  • IP67
  • Available in four options:
    • ABS/gray cover: -AGQ
    • ABS/transparent cover: -ATQ
    • Polycarbonate/gray cover: -CGQ
    • Polycarbonate/transparent cover: -CTQ
  • Available back panel in steel 1.6mm (ST) or plastic 3mm (P)
  • Mounting brackets, draw latch lock and waterproof lock available
  • Polycarbonate models have excellent UV resistance
  • RoHS, UL CE

Features Include:

Protection Level

  • IP66/67, IK07/08, NEMA 4X

Technical

  • Molded hinge & SUS latch type
  • Wall mount brackets are available
  • Gray or transparent cover, Steel and Plastic Back panels are available
  • Built-in Key ring

Certifications

  • UL508 on Polycarbonate products

Temperature range

  • ABS: -40°C to 86°C (-40°F to 185°F)
  • Polycarbonate: -40°C to 120°C (-40°F to 248°F)
  • UL94-HB(Transparent) Non-Flammable
  • UL94-V-0~5VA(Gray) Non-Flammable
