SCE-907236FSD
$4,451.96

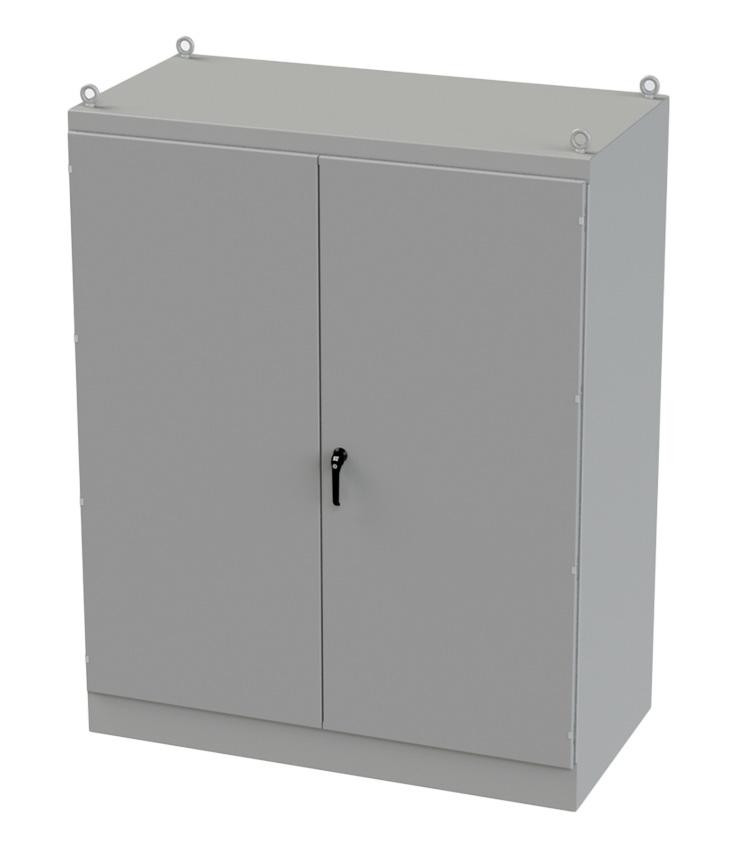

Enclsoure (FS D), 90 x 72 x 36" HWD, 0.104" Carbon Steel, ANSI-61 Gray, 2" Square Hole Seal SCE-HS2S Included, NEMA/UL 3R, 12, NEMA 13, IP55, Free-Standing Two-Door Single Access Enclosure
- Weight:
- 1,128.00 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Features Include:
- 0.104 In. carbon steel.
- Concealed hinges.
- Two-Door Single Access.
- Removable and interchangeable doors.
- Seams continuously welded and ground smooth.
- Lifting eyes for easy handling.
- Black zinc die cast keylocking/padlocking handle.
- 3-point latching mechanism.
- Latch rods have ramp shoes for easier door closing.
- Flange trough collar around all sides of door opening.
- Removable print pocket provided on door with 3-point latch.
- Mounting channels welded horizontally on sides of interior body at top, bottom and middle for mounting optional panels or rack mounting angles.
- Pour in place oil & water resistant gasket
- Ground stud on door.
- Provisions for light kits.
- Holes plugs provided to seal holes in bottom of enclosure.
Technical Information:
