SCE-L9128ELJ
Alt: Was SCE-L9128EL
$203.46

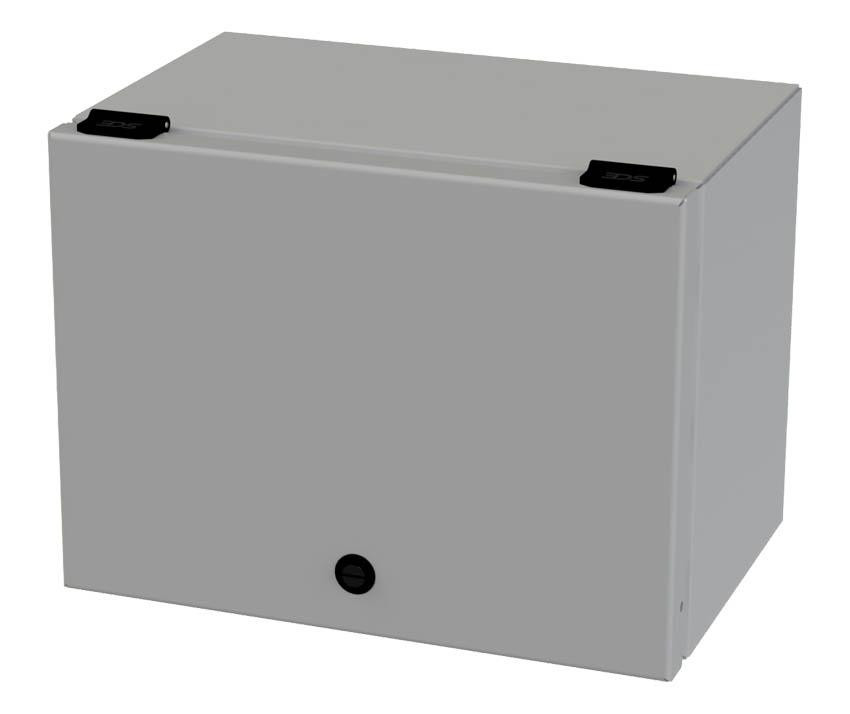

Enclosure ELJ Trough, 9 x 12 x 8", NEMA/UL 3R, 4, 12
- Weight:
- 11.50 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Features Include:
- 0.063 In. carbon steel
- Height: 9.00"
- Width: 12.00"
- Depth: 8.00"
- Seams continuously welded and ground smooth
- Flange trough collar around all sides of door opening
- Pour in place oil & water resistant gasket
- 10-32 Standoffs provided for mounting optional panels
- Removable hinges
- Doors open 180 degrees
- Black mini quarter turn latches
- Latches are opened or closed with a screwdriver
- Sealing washers and hole plugs included
- Ground stud on door & body
- Mounting holes in back of enclosure
- Mounting feet included
- Padlocking or keylocking latches, and tamper-resistant hardware is available
