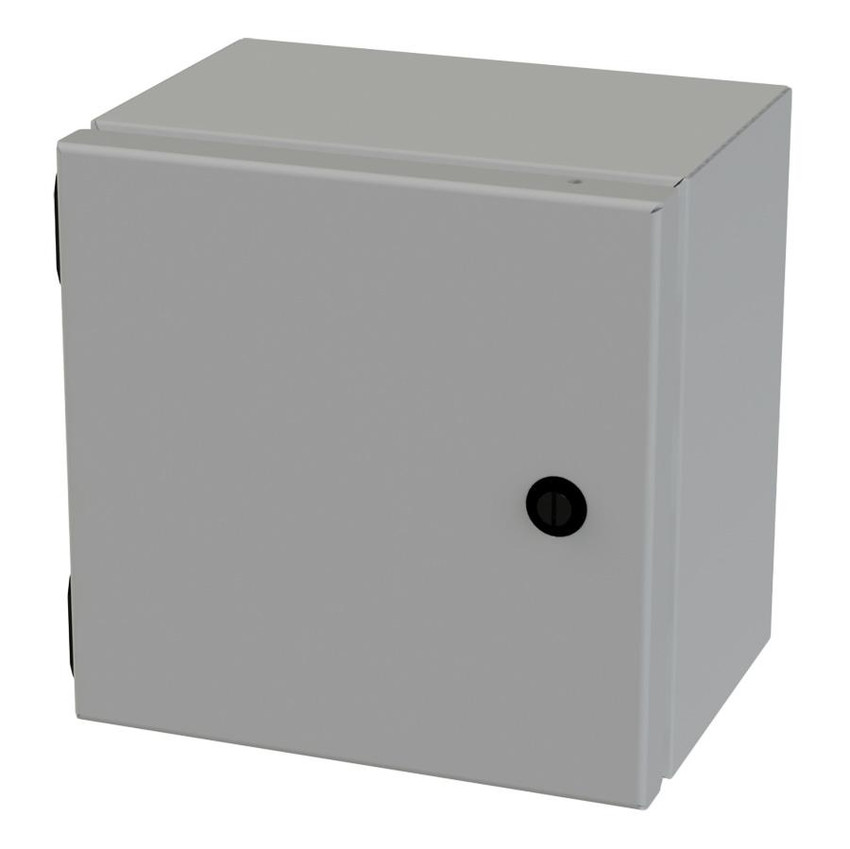

Enclosure (ELJ G), 8 x 8 x 6" HWD, 0.063" Carbon Steel, RAL-7035 Gray, with Mounting Foot Kit SCE-ELJMFK, NEMA/UL 3R, 4, 12, NEMA 13, IP66, Enviroline Junction Enclosure (RAL 7035 Gray)
SKU:
SCE-8086ELJLG
Weight:
13.20 LBS
Minimum Purchase:
1 unit
Please note: if this item is unable to ship UPS Ground it will not qualify for free shipping. You will be advised before your order is processed if it needs to ship freight. Thank you!
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
Modular enclosures
Endless combinations, multiple door arrangements, up to ten
Modular units work around each other for users to interact with them and equipment they hold
Wall mount enclosures
Generally the most expensive group
Indoor or outdoor options
Available as pushbutton enclosures up to large electrical requirements
Free-standing and floor-mounted enclosures
Mostly used outdoors and needing multi-door
Generally used for a large amount of electical components, single or multiple door
Non-Metallic enclosures
Includes fiberglass, polycarbonate
Used to protect from corrosion, UV rays or very damp conditions
Allows windowed or windowless
Includes pushbutton, junction, wall-mount and many other options
Operator system enclosures
Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Features Include:
0.063 In. carbon steel
Seams continuously welded and ground smooth
Flange trough collar around all sides or door opening
Pour in place oil & water resistant gasket
10-32 Standoffs provided for mounting optional panels
Removable hinges
Doors open 180 degrees
Black mini quarter turn latches
Latches are opened or closed with a screwdriver
Sealing washers and hole plugs included
Ground stud on door & body
Mounting feet included
Height: 8.00"
Width: 8.00"
Depth: 6.00"
Est. Ship Weight: 7.00 lbs
*Special Instructions apply for IS3, IS4 and IS6 to maintain the environmental rating of Type 3R for these parts. Instructions are located on the enclosure door. Drip shield is required on IS3, drip shield is recommended on IS4 and IS6. Drain holes are required on all.
