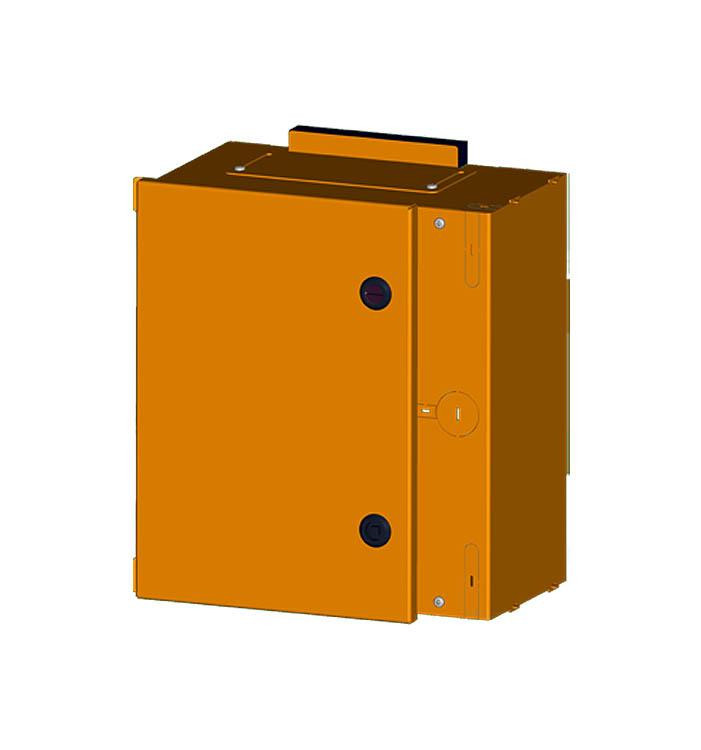

Designed for use with enclosures that require additional protection against Arc Flash. This enclosure can be used within an environmentally rated enclosure to isolate the main power supply. Increasing personal protection by preventing incidental contact or exposure to the high voltage arc flash and shock hazard, and potentially reducing the PPE level for the lower risk components when the Internal Disconnect Enclosure cover is closed.
The Internal Disconnect Enclosure can be easily incorporated into a new system or added to a pre-existing system on variable depth or cable operated disconnects. Aids in achieving compliance with NFPA 70E by concealing main power supply.
0.060 In. carbon steel.
Enclosures are symmetrical for use with left or right hand disconnects.
Removable continuous hinges.
110 degree door stop prevents incidental contact with other components.
Black quarter turn latch.
Black spring loaded quarter turn latch with 7mm square insert and key.
Latches automatically when door is closed.
Gland plate top and bottom provides easy installation of wires.
Mounting holes provided in back for securing to the sub-panel of main enclosure.
