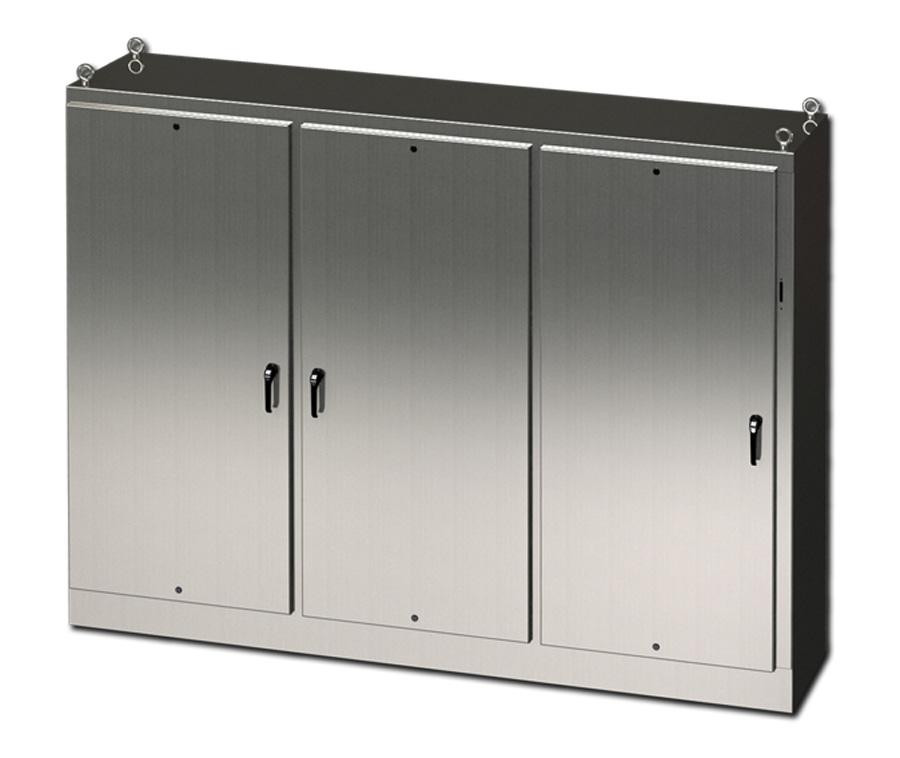

SCE-90XM3EW24

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

• Modular enclosures
• • Endless combinations, multiple door arrangements, up to ten
  • Modular units work around each other for users to interact with them and equipment they hold
• Wall mount enclosures

  • Generally the most expensive group
  • Indoor or outdoor options
  • Available as pushbutton enclosures up to large electrical requirements
• Free-standing and floor-mounted enclosures
  • Mostly used outdoors and needing multi-door
  • Generally used for a large amount of electical components, single or multiple door
• Non-Metallic enclosures
  • Includes fiberglass, polycarbonate
  • Used to protect from corrosion, UV rays or very damp conditions
  • Allows windowed or windowless
  • Includes pushbutton, junction, wall-mount and many other options
• Operator system enclosures
  • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Series Features Include:

• 0.125 In. carbon steel.
• Seams continuously welded and ground smooth.
• Flange trough collar around all sides of door opening.
• Body stiffeners in large enclosures for extra rigidity.
• Heavy duty lifting eyes anchor into reinforced top.
• Removable center posts permit easy panel installation.
• Concealed hinges.
• Black zinc die cast coin proof/padlocking handle on main door with black zinc die cast padlocking handle on slave doors.
• 3-point latching mechanism.
• Ends of latch rods have ramp shoes for easier door closing.
• Panel supports.
• Large removable print pockets.
• Pour in place oil & water resistant gasket.
• Removable panels mount on collar studs.
• Master door is far right-hand door on all enclosures.
• Defeater on master door requires a screwdriver to open.
• Mechanical interlock activated by master door prevents slave doors from being opened first. Doors can be closed in any order.
• Ground stud on door and body.
• Provisions for light kit.
• Holes plugs provided to seal holes in bottom of enclosure.

Technical Information:

• Saginaw Heavy Duty Free-Standing Enclosures for Flange-Mounted Disconnects Technical Data
• Saginaw SCE Series Enclosures Product Brochure
• Saginaw Product Catalog 2021
• Saginaw Enclosure Design Considerations
