SCE-604816LP

Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan

Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.

• Modular enclosures
• • Endless combinations, multiple door arrangements, up to ten
  • Modular units work around each other for users to interact with them and equipment they hold
• Wall mount enclosures

  • Generally the most expensive group
  • Indoor or outdoor options
  • Available as pushbutton enclosures up to large electrical requirements

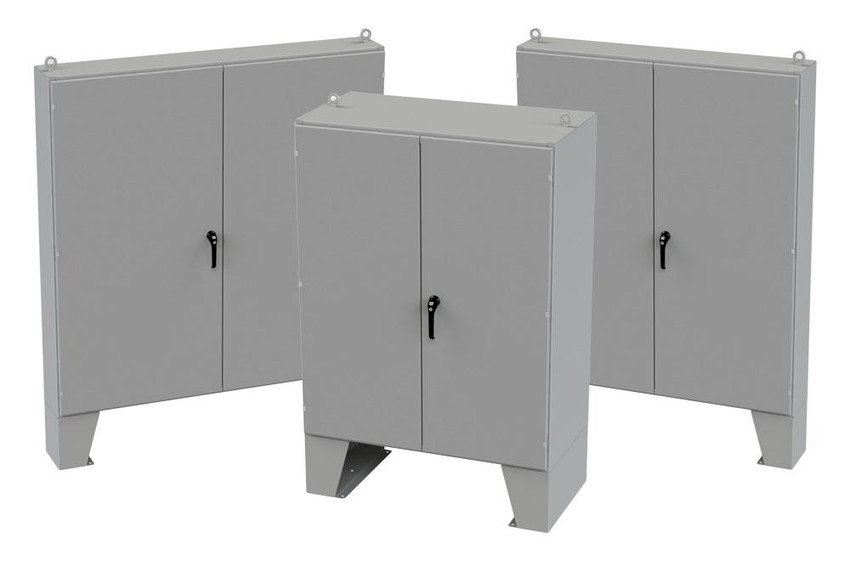

• Free-standing and floor-mounted enclosures
  • Mostly used outdoors and needing multi-door
  • Generally used for a large amount of electical components, single or multiple door
• Non-Metallic enclosures
  • Includes fiberglass, polycarbonate
  • Used to protect from corrosion, UV rays or very damp conditions
  • Allows windowed or windowless
  • Includes pushbutton, junction, wall-mount and many other options
• Operator system enclosures
  • Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.

Marshall Wolf Automation is your authorized Saginaw distributor.

Larger enclosures will drop direct to you from Michigan.

Series Features Include:

• 0.104 In. carbon steel.
• Flange trough collar around all sides of door opening.
• Seams continuously welded and ground smooth.
• Strong, rigid construction with body stiffeners.
• Gasketed overlapping doors eliminate need for center post.
• Black zinc die cast keylocking/padlocking handle.
• 3-point latching mechanism.
• Latch rods have ramp shoes for easier door closing.
• Concealed hinges.
• Removable print pocket provided on door with 3-point latch.
• 12 removable floor stands.
• Heavy duty lifting eyes.
• Panel supports.
• Pour in place oil & water resistant gasket
• Collar studs 3/8-16 provided for mounting optional panels.
• Ground stud on door and body.
• Hole plugs provided to seal holes in bottom of enclosure.
