SCE-SD180806LG
Alt: Modular IMS Industrial Enclosure Series
$2,195.13
Enclosure 1 Door IMS Disc., 70.87x31.5x22", NEMA/UL 3R, 12
- Weight:
- 388.80 LBS
- Minimum Purchase:
- 1 unit
Description
Saginaw specializes in standard stock and custom designed enclosures that are manufactured in Saginaw, Michigan
Saginaw manufacturers carbon steel, stainless steel and non-metallic enclosures. They specialize in NEMA 1, 3, 3R, 4, 4X and 12.
- Modular enclosures
-
- Endless combinations, multiple door arrangements, up to ten
- Modular units work around each other for users to interact with them and equipment they hold
- Wall mount enclosures
- Generally the most expensive group
- Indoor or outdoor options
- Available as pushbutton enclosures up to large electrical requirements
- Free-standing and floor-mounted enclosures
- Mostly used outdoors and needing multi-door
- Generally used for a large amount of electical components, single or multiple door
- Non-Metallic enclosures
- Includes fiberglass, polycarbonate
- Used to protect from corrosion, UV rays or very damp conditions
- Allows windowed or windowless
- Includes pushbutton, junction, wall-mount and many other options
- Operator system enclosures
- Each enclosure allows a user to work with a computer or their instruments, accessibility is the key feature.
Marshall Wolf Automation is your authorized Saginaw distributor.
Larger enclosures will drop direct to you from Michigan.
Series Features Include:
- 0.104 In. carbon steel.
- Seams continuously welded and ground smooth.
- Flange trough collar around all sides of door opening
- Heavy duty lifting eyes anchor into reinforced top.
- Body stiffeners for extra rigidity.
- Mounting holes provided in bottom of enclosure for installing plinth base or securing to the floor.
- Concealed hinges.
- Removable and interchangeable doors.
- Black zinc die cast padlocking handle.
- 3-point latching mechanism.
- Large removable print pocket.
- Mounting channels provided in top and bottom of enclosure.
- Pour in place oil & water resistant gasket
- Mechanical interlock provided on two door disconnect enclosures and all enclosures are provided with provisions for system expansion.
- Ground stud on door & body.

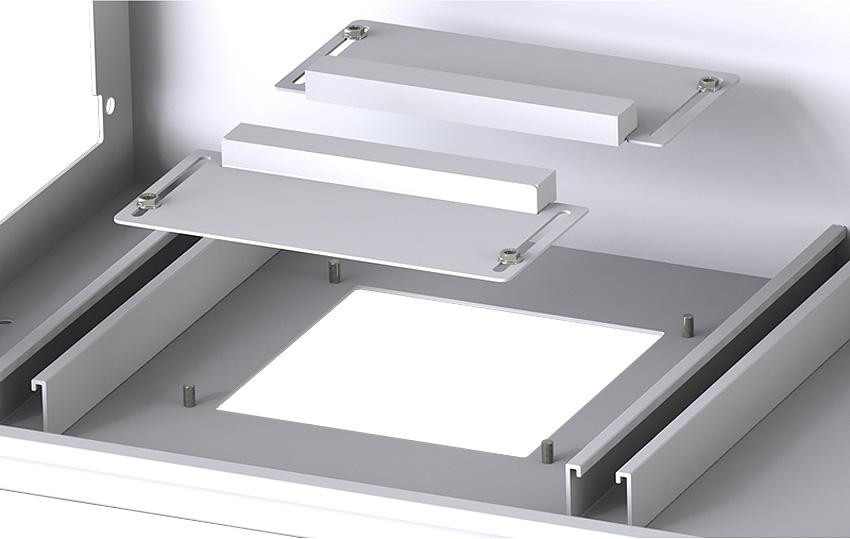

- Gland plate provided in bottom of enclosure.
Technical Information:
- Saginaw Industrial Modular System (IMS) Enclosures Catalog
- Saginaw IMS Single-Door Enclosure Accessories
- Saginaw Product Catalog 2021
- Saginaw Enclosure Design Considerations
Accessory Documents:
- Saginaw Dead Front for IMS Enclosure Installation Guide
- Saginaw IMS Enclosure End Plate Installation Guide
- Saginaw IMS Enclosure Filler Plate Installation Guide
- Saginaw IMS Enclosure Plinth Base & SCE-FMA Mounting Angle Kit Installation Guide
- Saginaw IMS Enclosure SCE-SDMI Interlock Kit Installation Guide
- Saginaw IMS Enclosure SCE-MDMI Interlock Kit Installation Guide
- Saginaw IMS Enclosure SCE-TEMG, SCE-EMG & SCE-URA18 Installation Guide
Read more about Enclosures here!
Accessories
Available Now!
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$206.75
$216.38
$89.87
Saginaw
SCE-20POS

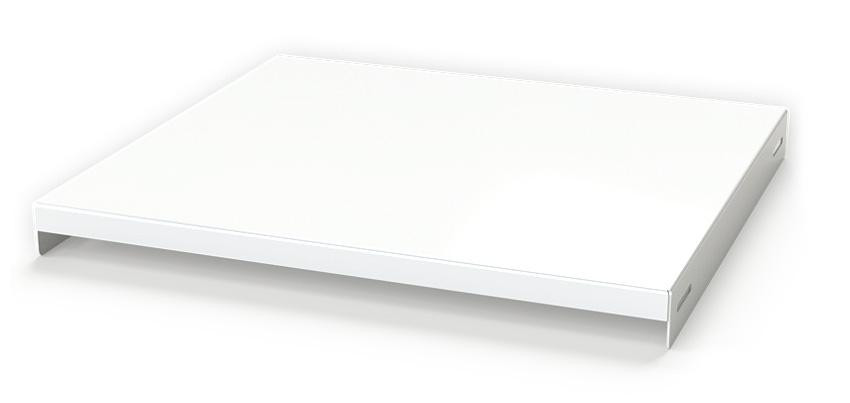

Workstation Pull-Out Shelf, 2.00 x 19.50 x 20.00" HWD, Heavy Gauge Steel, Powder Coated White, Mounting Hardware Included, NEMA/UL N/A
