ESWS-B9V24A-RM24

WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.

Magnetic starters are designed to protect and operate motors.

There are a number of starters available from WEG:

Non-combination starters:

• ESW series is metallic, NEMA 1, across the line starter, three phase
• ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
• ESWX series is metallic, NEMA 7/9, explosion proof starters
• PESW series is non-metallic, NEMA 4X, across the line starter, three phase
• PESWS series is non-metallic, NEMA 4X, across the line starter, single phase

Combination starters:

• ESWC series
• ESWE series
• ESWF series

Marshall Wolf Automation is your authorized WEG distributor!

Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.

Features Include:

• Start Type: Direct Single-phase
• Control voltage: 180-208V50HZ/208-240V60HZ
• Rated current (AC-3): 9A (CWB9)
• Overload relay: 1.2-1.8 A (RW27)
• Rated operational voltage: Ue<=600V
• Control devices: A-On-Off Button
• Dimensions (H x W x D): 9.5 in x 5.5 in x 5.0 in
• Metallic enclosure type 1
• Degree of protection: TYPE1
• Starters Complements: Does Not Contain
• IEC contactors inside
• Trip class 10 bimetallic overload relays
• Phase loss sensitivity protection

Technical Information:

• Weg ESW Enclosed Starter Flyer
• Weg ESW & PESW Enclosed Starter Brochure

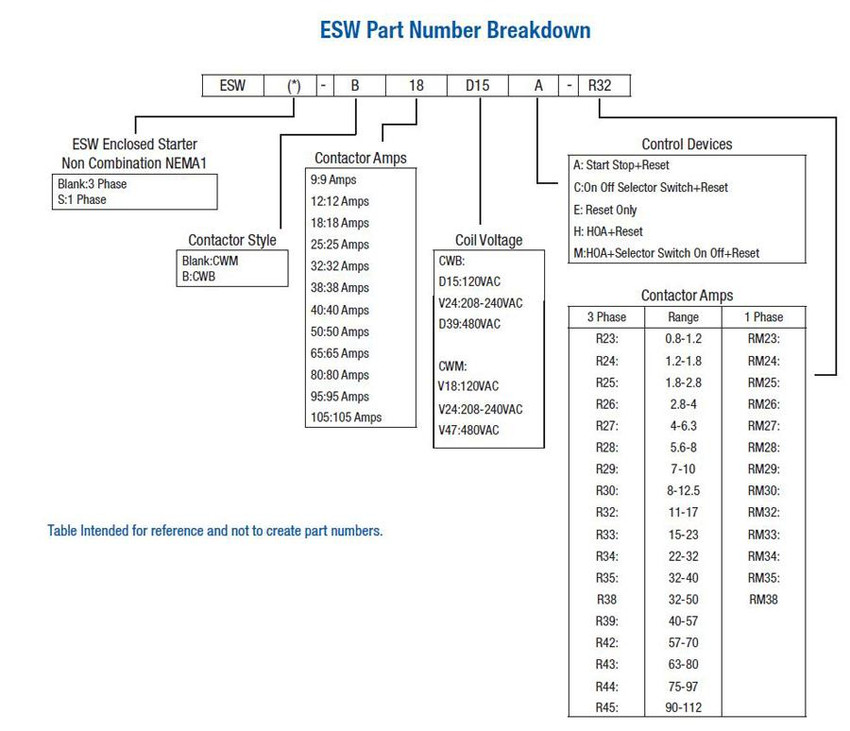

• Weg ESW & PESW Enclosed Starter Part Number Breakdown
• Weg KIT KESW Installation Guide
• Weg VFD & Enclosed Motor Controls Catalog
• Weg Power and Control Products Catalog
