Weg
PESWS-B9V24AX-RM62
Enclosed Starter, 0.33hp@115V / 1hp@230V, 9A, 208-240V Coil, Start / Stop+Reset, 5.6-8A Overload Range, Single Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
$73.00

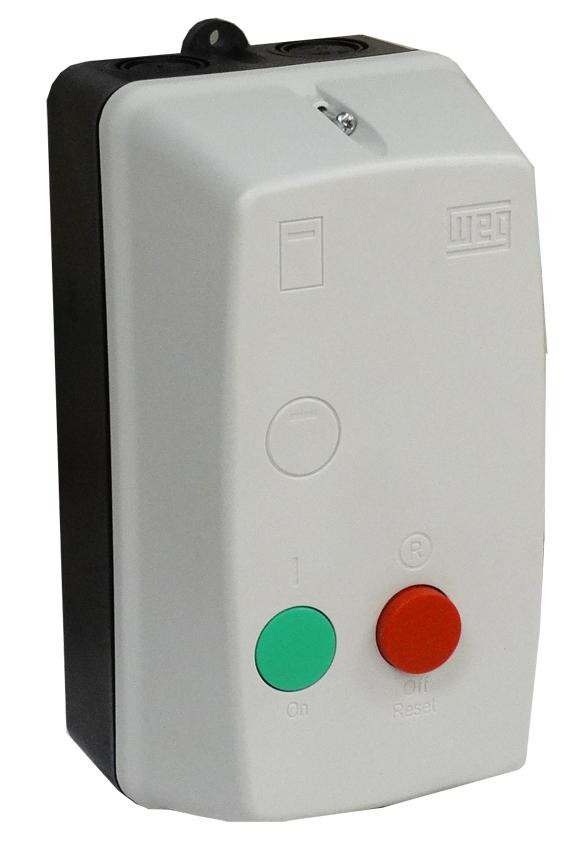

Product image is representative only, please verify specifications.
PESWS-B9D15AX-RM62
Alt: This item replaced PESWS-9V18AX-RM28
$77.29
Enclosed Starter, 0.33hp@115V / 1hp@230V, 9A, 120V Coil, Start / Stop+Reset, 5.6-8A Overload Range, Single Phase, Non-Metallic Enclosure, NEMA 4X, Full Voltage, Non-Reversing, Non-Combination
- Weight:
- 2.30 LBS
- Minimum Purchase:
- 1 unit
Description
WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.
Magnetic starters are designed to protect and operate motors.
There are a number of starters available from WEG:
Non-combination starters:
- ESW series is metallic, NEMA 1, across the line starter, three phase
- ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
- ESWX series is metallic, NEMA 7/9, explosion proof starters
- PESW series is non-metallic, NEMA 4X, across the line starter, three phase
- PESWS series is non-metallic, NEMA 4X, across the line starter, single phase
Combination starters:
- ESWC series
- ESWE series
- ESWF series
Marshall Wolf Automation is your authorized WEG distributor!
Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.
Features Include:
- Start Type: Direct Single-phase
- Control voltage: 120V50/60HZ
- Overload relay: 5.6-8 A (RW27)
- Rated Current: 9A (CWB9)
- Control devices: A-On-Off Button
- Dimensions (H x W x D): 8.622in x 4.4882in x 4.4331in
- Degree of protection: TYPE4X
- Assembly method (start key): Plastic Crate
- IEC contactors inside
- Trip class 10 bimetallic overload relays
- Phase-loss sensitivity protection
- Automatic and manual RESET options
Technical Information:
- Weg PESW Series Enclosed Starter Flyer
- Weg ESW & PESW Series Enclosed Starters Brochure
- Weg ESW & PESW Enclosed Starter Part Number Breakdown
- Weg ESW/PESW Series Connections for Non-Reversing Starters
- Weg KIT KESW Installation Guide
- Weg VFD & Enclosed Motor Controls Catalog
- Weg Power and Control Products Catalog
- Weg Enclosed Starters Catalog
Learn more about Contactors, Starters & Overload Relays here!
