ESW-105V18E-R45
Alt: 10796808
$526.50
Enclosed Starter, 40hp@230V, 105A, 120V Coil, Reset Only, NEMA 1, 90-112A Overload Range, 3 Phase, Metallic Enclosure, NEMA 1, Full Voltage, Non-Reversing, Non-Combination
- Weight:
- 19.90 LBS
- Minimum Purchase:
- 1 unit
Description
WEG offers a full line of magnetic starters that feature components that meet IEC design standards and UL horsepower ratings plus use WEG contactors and overload relays.
Magnetic starters are designed to protect and operate motors.
There are a number of starters available from WEG:
Non-combination starters:
- ESW series is metallic, NEMA 1, across the line starter, three phase
- ESWS series is metallic, NEMA 1, non-reversing, across the line starter, single phase
- ESWX series is metallic, NEMA 7/9, explosion proof starters
- PESW series is non-metallic, NEMA 4X, across the line starter, three phase
- PESWS series is non-metallic, NEMA 4X, across the line starter, single phase
Combination starters:
- ESWC series
- ESWE series
- ESWF series
Marshall Wolf Automation is your authorized WEG distributor!
Effective May 2023: WEG Electric has announced that their ESW and ESWS series will now use the WEG CWB series of contractors, replacing the currently used CWM series of contactors.
Features Include:
- Start Type: Direct Three-phase
- Control voltage 110V50HZ/120V60HZ
- Rated current (AC-3): 105A
- Overload relay: 90-112 A (RW117)
- Rated operational voltage: Ue<=600V
- Control devices: E-Reset

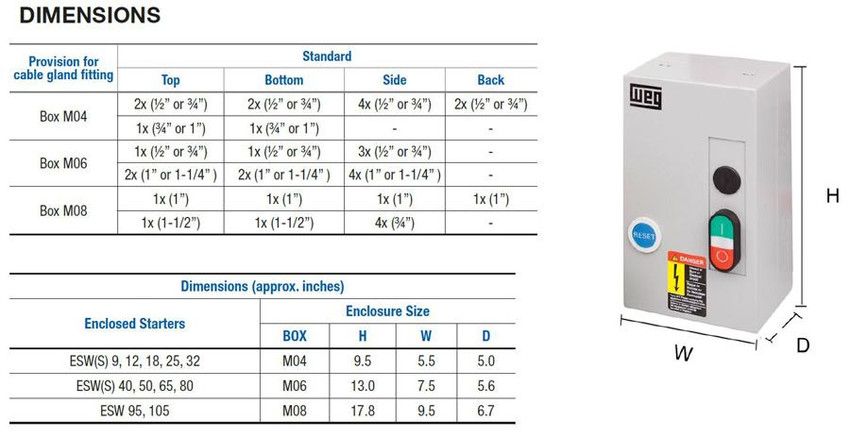

- Dimensions (H x W x D): 17.8 in x 9.5 in x 6.7 in
- Metallic enclosure type 1
- Degree of protection: TYPE1
- Starters Complements: Does Not Contain
- IEC contactors inside
- Trip class 10 bimetallic overload relays
- Phase loss sensitivity protection
Technical Information:
Learn more about Contactors, Starters & Overload Relays here!
