Description

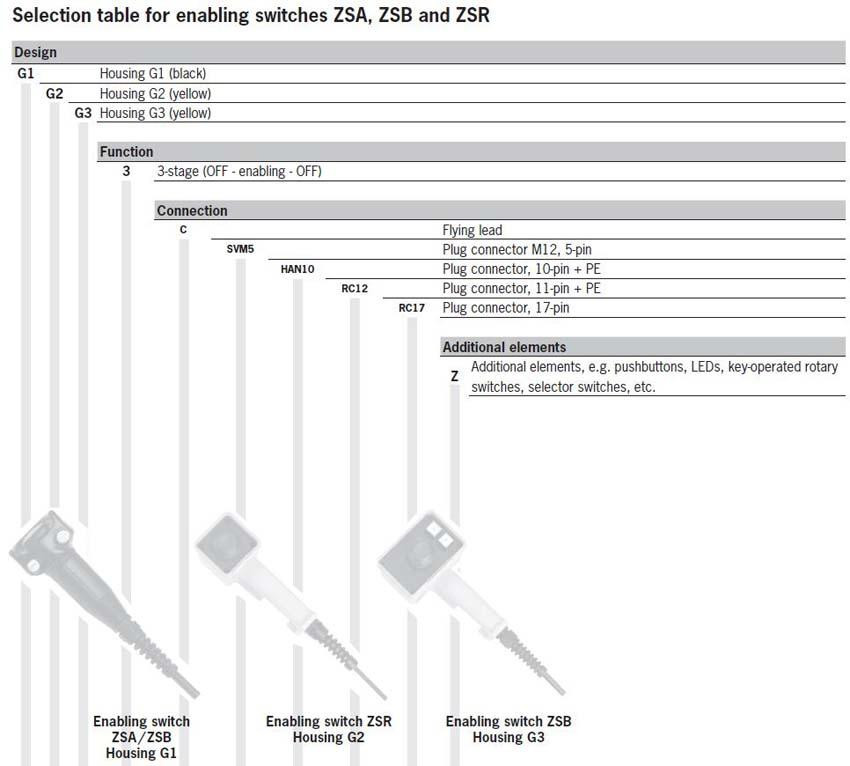

Series Features Include:
- 3-stage function

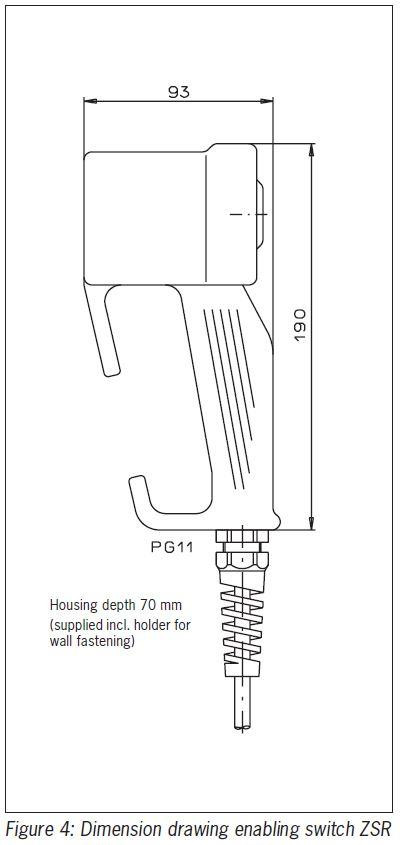

- Housing G2
- Coiled connecting cable, 5 m
- Including holder
- Housing: Cap Elastomer, low PAH, black, Housing Plastic, yellow
- Connecting Cable: 8x0.34 mm²
- Connection: flying lead
- Degree of protection: IP65
- Rated Conditional Short-Circuit Current: 100 A
- Rated Impulse Withstand Voltage Uimp: 2.5 kV
- Rated Insulation Voltage Ui: 250 V
- Switching Current (min. at 24 V): 1 mA
- Switching Voltage (min. at 10 mA): 12 V
- Utilization category: AC-15 2A 230V, DC-13 2A 24V
- Number of NO contacts: 2
- Number of positively driven contacts: 2
- Switching characteristics: 3-stage enabling switch
