077029
Alt: 77029, ZSB077029
$842.67

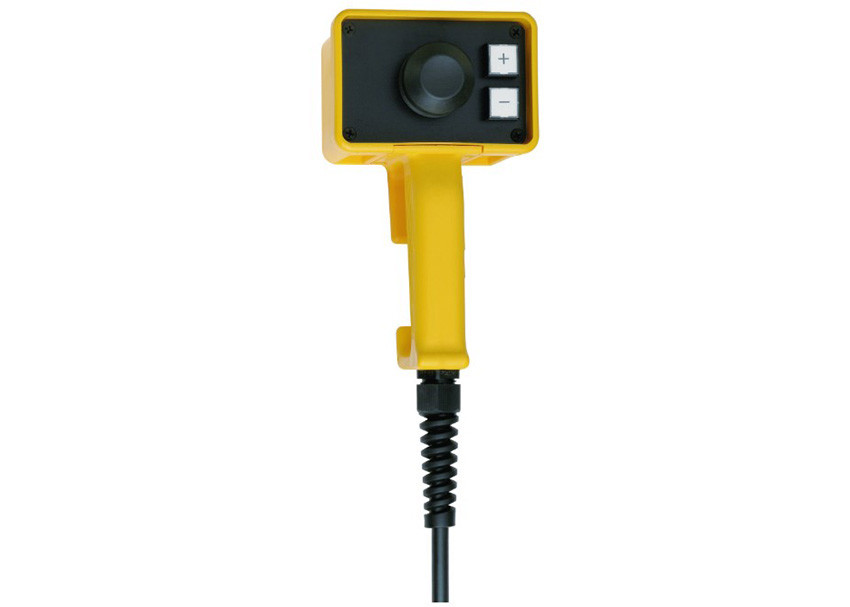

Enabling Pushbutton, ZSB077029
- Weight:
- 3.87 LBS
- Minimum Purchase:
- 1 unit
Description
Features Include:
- Connecting cable: 8x0.5 mm² + 8x0.14 mm²
- Degree of contamination (external, according to EN 60947-1): Industry 3
- Rated conditional short-circuit current: 100 A
- Rated impulse withstand voltage Uimp: 0.8 kV
- Rated insulation voltage Ui: 250 V
- Short circuit protection according to IEC 60269-1: at 24V 2A gG
- Switching current: min. at 24 V min. 1 mA
- Switching voltage: min. at 10 mA min. 12 V
- Utilization category: DC-13 2A 24V/ AC-15 2A 24V
- Short circuit protection according to IEC 60269-1: Additional elements at 24V 0.1A gG
- Utilization category: DC-13 Additional elements 100mA 24V/ AC-15 Additional elements 400mA 24V
- Ambient temperature: -5 - +50 °C
- Cable length: Straight 5 m
- Connection Plug connector number of pins 12
- Degree of protection: IP65
- Housing: Plastic, yellow / Cap Elastomer, low PAH, black
- Number of NO contacts: 2
- Number of positively driven contacts: 2
- Switching principle Slow-action contact elements
