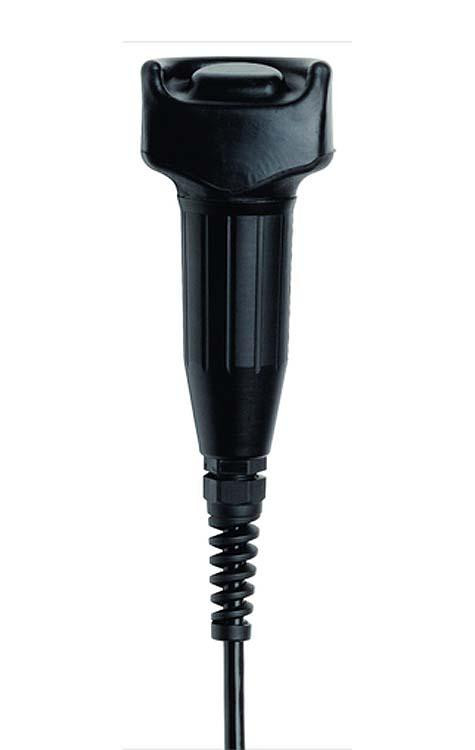

110560

Features Include:

• Connecting cable: 8x0.34 mm²
• Rated conditional short-circuit current: 100 A
• Rated impulse withstand voltage Uimp: 0.8 kV
• Rated insulation voltage Ui: 32 V
• Switching current: min. at 24 V 1 mA
• Switching voltage: min. at 10 mA 12 V
• Ambient temperature: -5 - +50 °C
• Cable length: Straight 10 m
• Connection: Plug connector number of pins 5
• Degree of protection: IP67
• Material: Plastic
• Number of NO contacts: 2
• Number of positively driven contacts: 2
• Switching principle: Slow-action contact elements
• Reliability values according to EN ISO 13849-1
• B10d: 0.5 x 10⁶

Technical Information:

• Euchner ZS Series Enabling Switches Catalog
• Euchner ZSA/ZSR Series Enabling Switches Instruction Guide
