072870

072870

Alt: 72870, ZSA2B2G15CC1926

$649.65

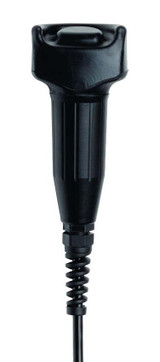

Enabling Pushbutton, ZSA2B2G15CC1926

Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description

Series Features Include:

  • Housing G1
  • 3-stage function
  • Straight connecting cable with plug connector, 15 m
  • Connecting cable: 6x0.34 mm²
  • Connection: Plug connector number of pins 5
  • Degree of protection: IP67
  • Material: Plastic
  • Rated Conditional Short-Circuit Current: 100 A
  • Rated Impulse Withstand Voltage Uimp: 0.8 kV
  • Rated Insulation Voltage Ui: 32 V
  • Switching Characteristics: 3-stage enabling switch
  • Switching Current (min. at 24 V): 1 mA
  • Switching Voltage (min. at 10 mA): 12 V
  • Utilization category: AC-15 4A 24V, DC-13 4A 24V
