$140.84
070750
Alt: 70750, ZSA1-1
$274.60

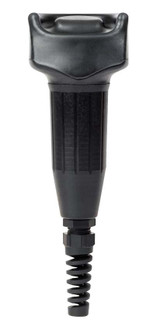

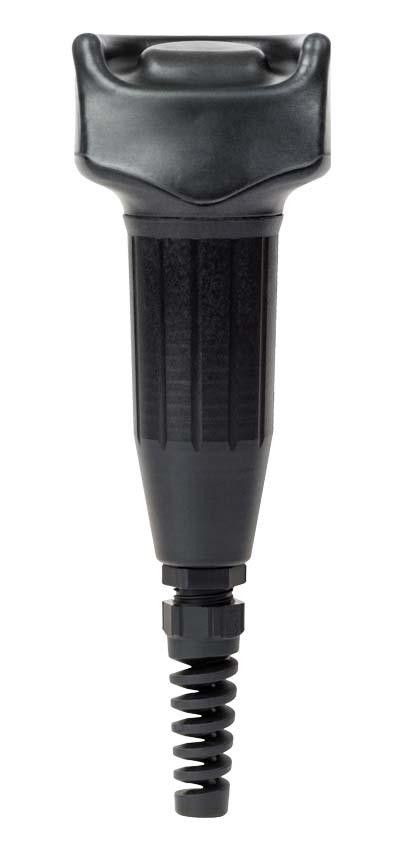

Enabling Pushbutton, ZSA1-1
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Euchner is a leading global manufacturer of a complete line of safety solutions. Their products include a full line of safety switches; limit, interlock, foot, rope pull and emergency stop. They also offer safety controllers, light curtains, multifunctional gate boxes and ID systems.
Founded by Emil Euchner in 1940, Euchner remains a family owned company.
Series Features Include:
- Housing G1
- 2-stage function
Kit without connecting cable - Connection: Tab connector 2.8 x 0.8 IEC 760, cable Ø 3.5 - 8.0 mm
- Degree of protection: IP67
- Material: Plastic
- Rated Conditional Short-Circuit Current: 100 A
- Rated Impulse Withstand Voltage Uimp: 2.5 kV
- Rated Insulation Voltage Ui: 250 V
- Switching Characteristics: 2-stage enabling switch
- Switching Current (min. at 24 V): 1 mA
- Switching Voltage (min. at 10 mA): 12 V
- Utilization category: AC-15 4A 230V, DC-13 3A 24V
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
$86.96
$120.82
