092141

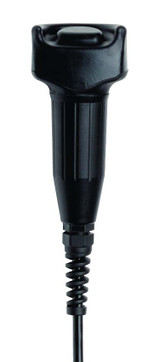

Series Features Include:

• Housing G1
• 3-stage function
• Straight connecting cable with plug connector, 5 m
• Direct connection to safety switch
• Connecting cable: 8x0.5 mm² + 8x0.14 mm²
• Connection: Plug connector number of pins 12
• Number of NO contacts: 2
• Number of positively driven contacts: 2
• Degree of protection: IP67
• Material: Plastic
• Rated Conditional Short-Circuit Current: 100 A
• Rated Impulse Withstand Voltage Uimp: 0.8 kV
• Rated Insulation Voltage Ui: 32 V
• Switching Characteristics: 3-stage enabling switch
• Switching Current (min. at 24 V): 1 mA
• Switching Voltage (min. at 10 mA): 12 V
• Utilization category: AC-15 2A 24V, DC-13 2A 24V

Technical Information:

• Euchner ZS Series Enabling Switches Catalog
• Euchner ZSA/ZSR Series Enabling Switches Instruction Guide
