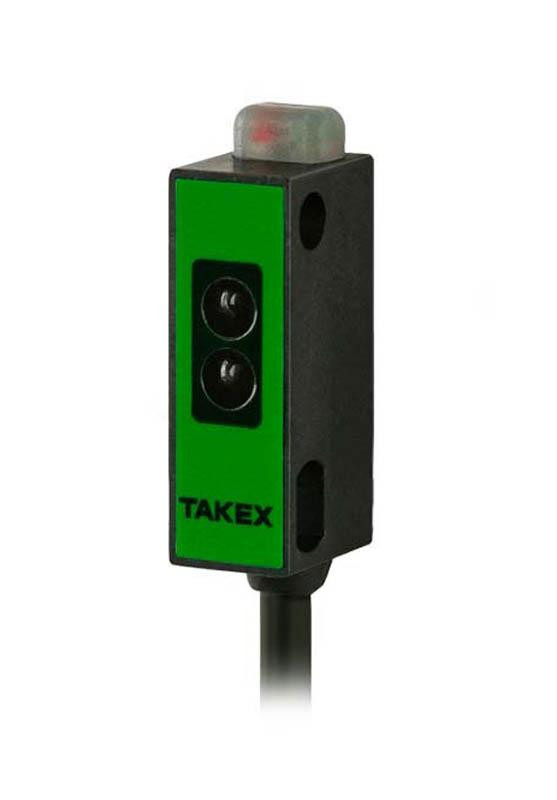

UM-Z3SV

Our Takex UM Series is an ultraminiature photoelectric sensor that is ideal when you need a thin, compact sensor!

• Available in through beam, diffuse reflective or convergent reflective
• Ranges from 2 to 1m (through beam)
• Red LED light source
• 3.5mm achieved with embedded amplifier

Features Include:

• Detection Method: Limited reflective type
• Detection Distance: 5-30mm
• Power Supply: 12 - 24V DC ±10％ / Ripple 10％ max.
• Current Consumption: 27mA max.
• Output Mode: NPN open collector, Rating: sink current 80 mA (30 VDC) max. (PNP output type also available.)
• Hysteresis: Up to 10% of detecting distance
• Light source: Red LED (640nm)
• Volume: in-line sensitivity adjustment
• Material: Case: Liquid crystalline polyester (filler: polypropylene) Lens: ABS resin
• Weight: Approx. 40g

Indicator:

• Operation indicator (red LED)
• Stability indicator (green LED)

Connection:

• 0.15 sq. 3 core 2 m length (black)

Environmental Specifications:

• Ambient Light: 3,000 lx or less
• Ambient Temperature: -25°C - +55°C (non-freezing)
• Ambient Humidity: 35 - 85%RH (non-condensing)
• Vibration: 10 - 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction
