Werma
107-010-60
Electronic Buzzer, 115-230VAC, 80dB, Pulse Tone, IP65, Black, Ø28mm x 61mm High, Easy Connection via Connector Plug for the 22.5mm Control Panel
$45.00
107-000-60
Alt: 107.000.60, 10700060
$45.00

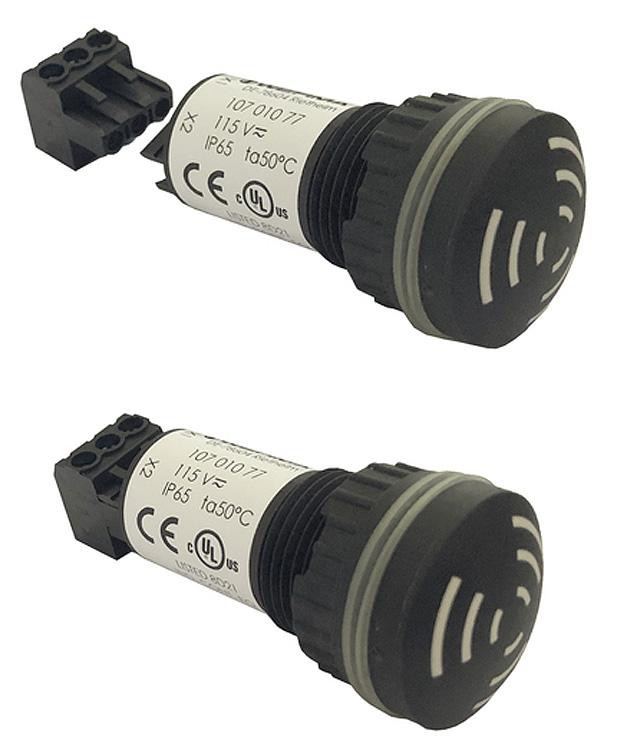

Electronic Buzzer, 115-230VAC, 80dB, Continuous Tone, Black, IP65, Ø28mm x 61mm High, Easy Connection via Connector Plug for the 22.5mm Control Panel
- Weight:
- 0.25 LBS
- Minimum Purchase:
- 1 unit
Configure Your Optimal Enclosure Solution
Choose the right enclosure with expert recommendations on compatible accessories like subpanels, fans, filters, heaters, thermostats, air conditioning units, and heat exchangers.
Description
Werma was founded by Werner and Erich Marquardt in 1950 and originally produced hair dryers and motors!
In 1957 they started producing buzzers and horns and stopped production on all other products. In 1994 WERMA presented the world's first modular signal tower, KombiSIGN.
They have since continued to expand their signal towers, beacons, horns and optical-audible products.
Specifications
Alternate Part Number
107.000.60, 10700060
All - Approvals
CE
All - Specific Ratings
IP65
Size
See Spec
Options
No Special Options
Tone
Continuous Tone
All - Voltage
115/230 VAC
Warranty
3 Years
Series
Electronic Buzzers Installation 107
Weight
0.25
Width
1.1
Height
2.4
Features Include:
- Rated operational voltage: 230 VAC
- Rated operational current: 12 mA
- Rated inrush current: 360 mA
- Operating voltage frequency: 50Hz at 230V
- Sound output: 80,0 dB (A)
- Tone type: Continuous tone
- Fixing: Built-in mounting

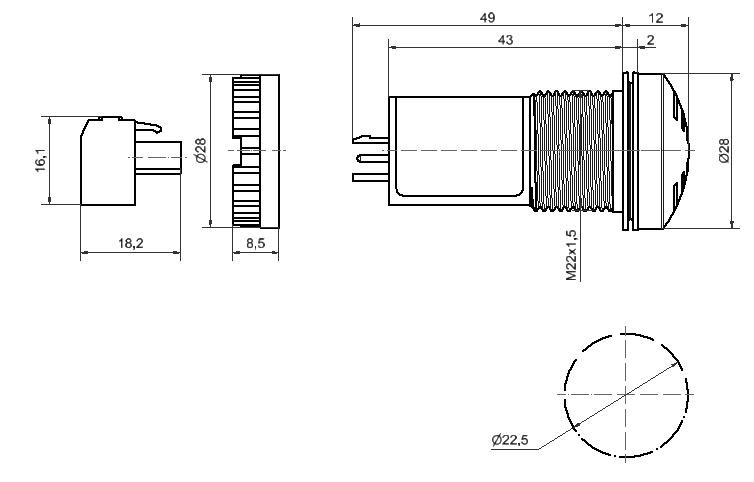

- Diameter in mm: 28 mm
- Height in mm: 61 mm
- Protection rating: IP65
- Connection Screw terminals
- Cross-sectional area maximum: 1,50mm² / 16AWG
- Volume (max) at 1m distance: 60,0 dB (A)
- Volume (max) at 10cm distance: 80,0 dB (A)
- Acoustic signal image: Continuous tone
- Number of tones: 1 tone
- Audio frequency: 2400 Hz
