EDP11S105DN3R11000
Alt: 14404466
Engineered Drive Panel, NEMA 3R, 230V, Normal: 40hp/105A, Heavy: 30hp/86A, with Bypass
- Weight:
- 240.00 LBS
- Minimum Purchase:
- 1 unit

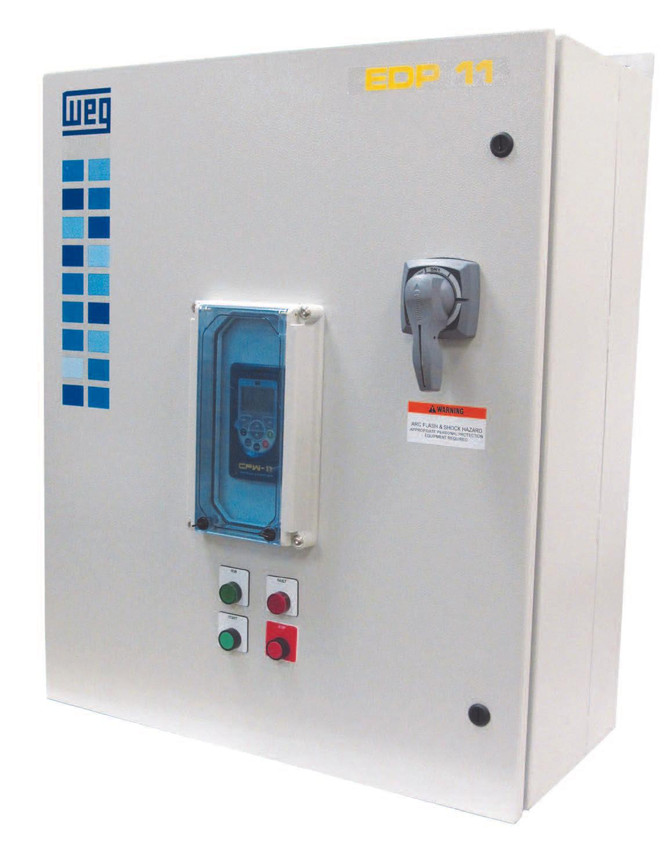

WEG's EDP11 enclosed drive panels are a standard catalog offering that is a complete package!
This series includes either a NEMA 12 or NEMA 3R enclosure and can be purchased with or without a 3-contactor bypass feature to have an across the line option if the VFD is down or being serviced.
What do you get in the NEMA 12 package?
A CFW11 series drive, indoor rating, wall mounted, circuit breaker with through the door handle, control power transformer, Internal fan, heatsink through back of cabinet, motor terminal block connections, door mounted keypad, start/stop pushbuttons, Run/Fault lights, Keypad cover.
The NEMA 3R is everything listed with the NEMA 12 plus: outdoor rating, some are wall or floor mount depending on HP, weather kit (rain/sun/snow shield), panel space heater and thermostat, lightning arrestor, Service Entrance rated.
Other options include the bypass system and a HOA/POT/TB option.
If you want a simple solution of power in and power out, with everything else taken care of, then this is your solution.
Marshall Wolf Automation is an authorized WEG distributor and offers free in-house technical support.
Series Features Include:
NEMA 12 Version:
- CFW11 Drive
- Indoor Rated
- Wall mounted
- Circuit Breaker with through door handle
- CFW11 VFD (Dual DC choke built-in)
- Fused 480V/120V CPT
- Internal Fan
- Heat sink through the back
- Motor Terminal Block
- Door mounted keypad
- Start / Stop Pushbuttons
- Run/Fault Pilot Lights
- Keypad cover - same as GPH2
- Drive and controls mounted in NEMA 4 section of panel; heat sink is external and rated NEMA 12
NEMA 3R Version:
- NEMA 12 features plus:
- Outdoor Rated
- Wall mounted
- Weather kit (rain/sun/snow shield)
- Panel space heater + thermostat
- Lightning arrestor
- Service entrance rated
3-Contactor Bypass Option:
- NEMA 12 or NEMA 3R version
- AC3 full rated by-pass contactor
- Drive input and output contactors
- Motor overload relay
- E-Stop Mushroom style pushbutton
- Enclosure size to be determined
