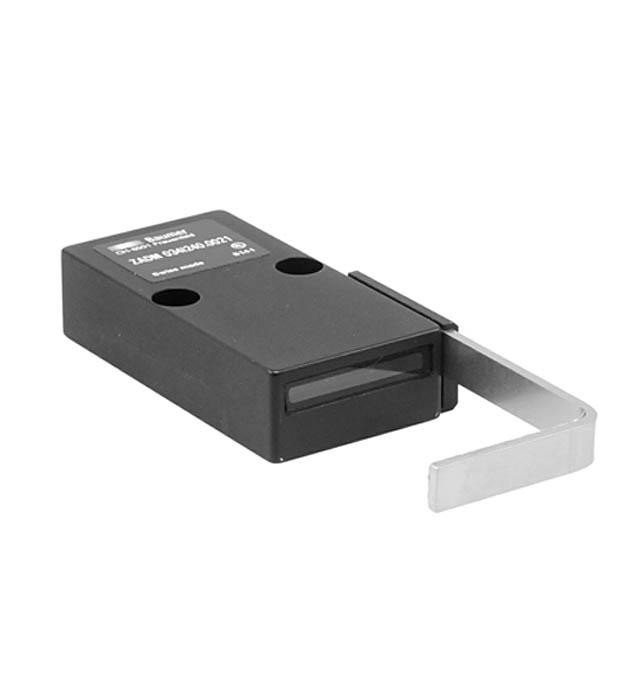

ZADM 034I240.0021

Edge Sensor, 34mm, Rectangular, Aluminum Connector M8 4-pin

Features Include:

• Measuring Field Size: 24 mm
• Measuring Distance (to object): < 40 mm
• Measuring Frequency: 2000 Hz
• Resolution: < 0.05 mm
• Repeat Accuracy: < 0305 mm
• Light Source: Pulsed Infrared Diode
• Wave Length: 880 nm
• Output Circuit: Analog
• Output Signal: 4 - 20 mA
• Connector M8 4 pin
• Operating Temperature: 0 - 55 °C
• Protection Rating: IP 67

Linearity Error:

• -0,4 - 0,4 mm (S = 0 - 40 mm)
• -0,2 - 0,2 mm (S = 20 - 40 mm)
