E2 AC-DXBC0540

E2 AC-DXBC0540

Alt: Eround Series

$44.22

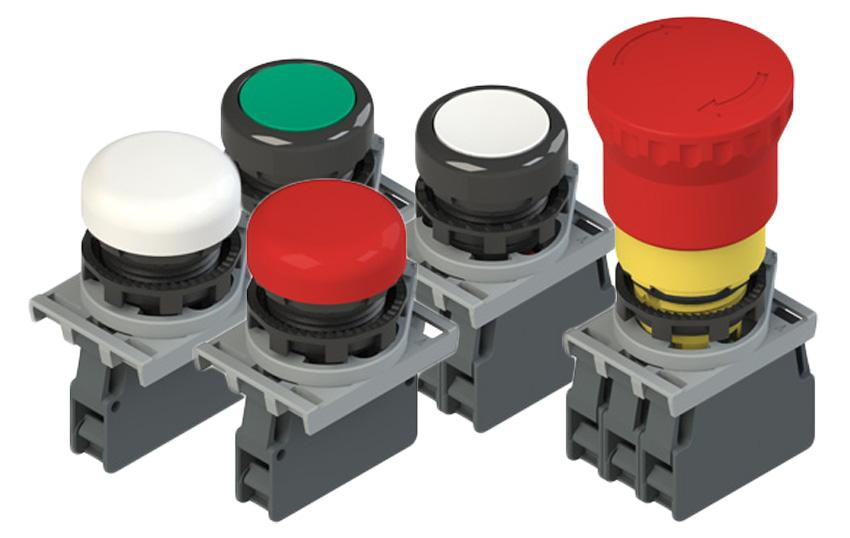

Complete Unit with Illuminated Pushbutton

Weight:
1.00 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.

They opened their US office and warehouse in 2018.

Series Features Include:

  • Protection degree: IP67 according to EN 60529
  • Safety Parameter: 2,000,000
  • Mechanical Endurance: 1 million operating cycles
  • Max. Actuation Frequency: 3600 operating cycles/hour
  • Actuating Force at Limit of Travel: 3.7 N (without contacts, spring-return button), 4.4 N (without contacts, maintained button)
  • Maximum Travel: 5 mm
  • Tightening torque of the fixing ring: 2 - 2.5 Nm
