E2 3PU2F1410-T6

E2 3PU2F1410-T6

Alt: E2 Series

$15.66

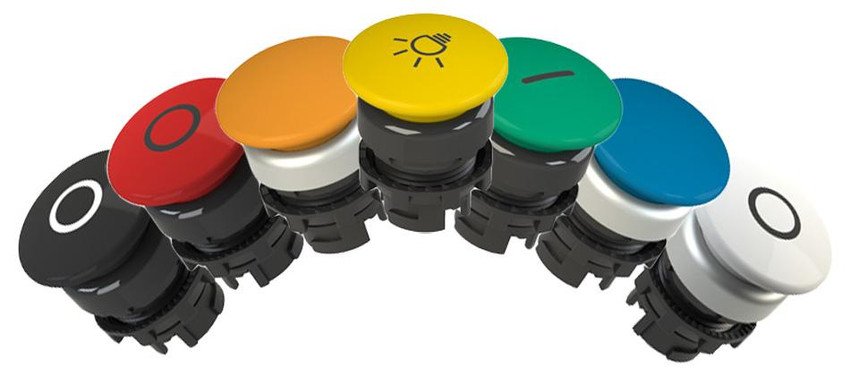

Spring-Return Black Mushroom Pushbutton

Weight:
0.50 LBS
Minimum Purchase:
1 unit
Adding to cart… The item has been added
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.

They opened their US office and warehouse in 2018.
Specifications
Color Black
Illuminated/Non-Illuminated See Spec
Normally Open/Closed See Spec
Pushbutton Type Auto Spring Return
All - Specific Ratings See Spec
Series E2 Series
Size 86mm
Type of Product See Spec
Warranty 1 Year
Alternate Part Number E2 Series
Weight 0.5000

Series Features Include:

  • Protection degree: IP67 according to EN 60529
  • Safety Parameter: 2,000,000
  • Mechanical Endurance: 1 million operating cycles
  • Max. Actuation Frequency: 3600 operating cycles/hour
  • Actuating Force at Limit of Travel: 3.7 N (without contacts, spring-return button), 4.4 N (without contacts, maintained button)
  • Maximum Travel: 5 mm
  • Tightening torque of the fixing ring: 2 - 2.5 Nm
