$21.11
Product image is representative only, please verify specifications.
E2 1PU2S129L1
Alt: E2 Series
$12.34

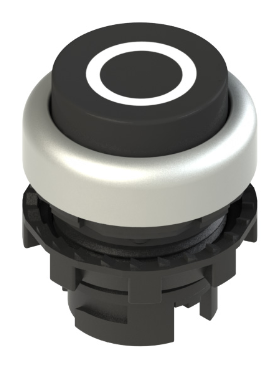

Spring-Return Black Projecting Pushbutton with Marking
- Weight:
- 0.10 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Specifications
Color
Black
Illuminated/Non-Illuminated
See Spec
Normally Open/Closed
See Spec
Pushbutton Type
Auto Spring Return
All - Specific Ratings
IP67
Series
E2 Series
Size
30mm
Type of Product
Pushbutton
Warranty
1 Year
Alternate Part Number
E2 Series
Weight
0.1000

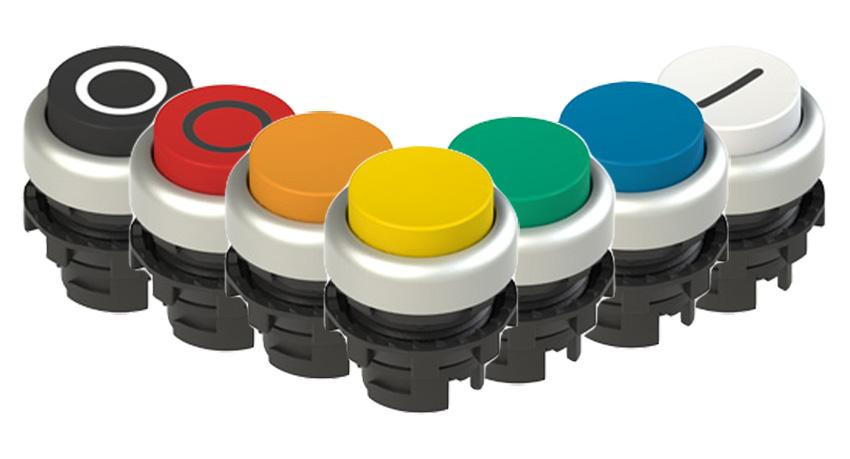

Series Features Include:
- Protection degree: IP67 according to EN 60529
- Safety Parameter: 2,000,000
- Mechanical Endurance: 1 million operating cycles
- Max. Actuation Frequency: 3600 operating cycles/hour
- Actuating Force at Limit of Travel: 3.7 N (without contacts, spring-return button), 4.4 N (without contacts, maintained button)
- Maximum Travel: 5 mm
- Tightening torque of the fixing ring: 2 - 2.5 Nm
