Product image is representative only, please verify specifications.
E2 1PL2F441L2

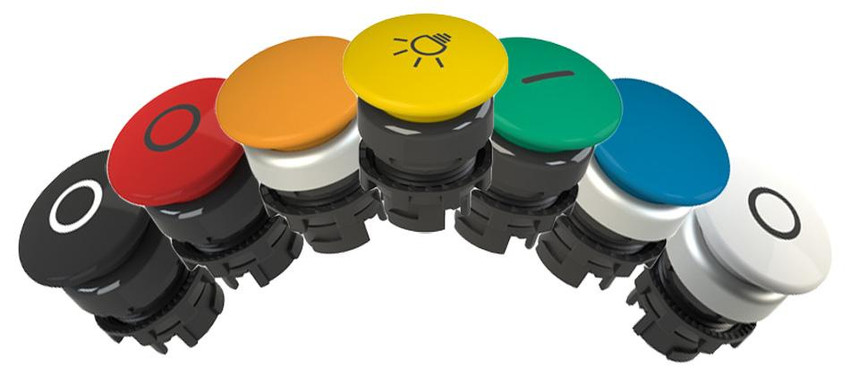

Alt: E2 Series
$14.23

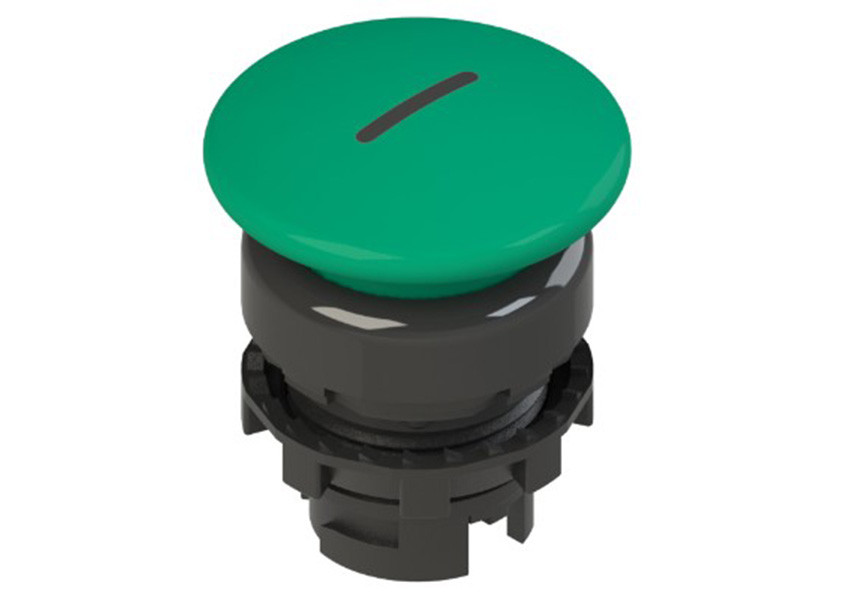

Illuminated Green Mushroom Pushbutton with Marking
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Pizzato Elettrica is an Italian manfucturer of position switches, safety products, microswitches, foot switches and signaling devices.
They opened their US office and warehouse in 2018.
Series Features Include:
- Protection degree: IP67 according to EN 60529and IP69K (see datasheet for full details)
- Safety Parameter: 2,000,000
- Mechanical Endurance: 1 million operating cycles
- Max. Actuation Frequency: 3600 operating cycles/hour
- Actuating Force at Limit of Travel: 3.7 N (without contacts, spring-return button), 4.4 N (without contacts, maintained button)
- Maximum Travel: 5 mm
- Tightening torque of the fixing ring: 2 - 2.5 Nm
