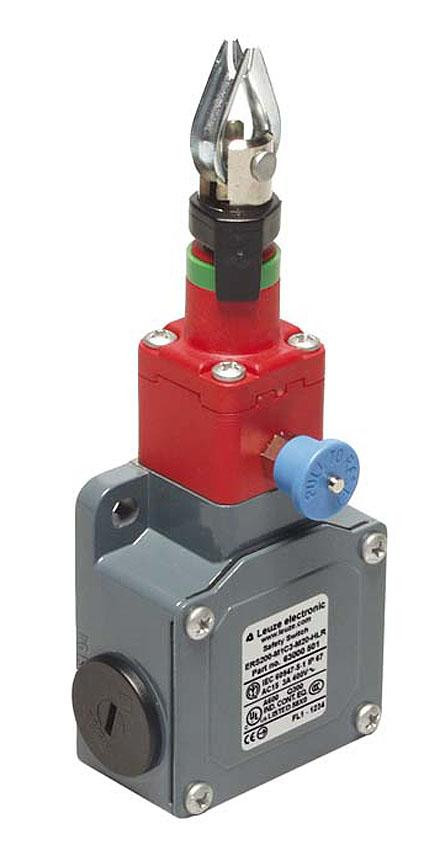

63000502

Leuze actually began as a textile mill in Southern Germany in 1861. In 1963 the decision was made to found Leuze Electronic and develop sensors for the company's textile machines. At the time they had no idea that they would develop into the successful international company they are today!



Leuze has an extensive range of sensors including measuring, safety, identifications and switching.



Their U.S. Headquarters is located in Duluth, Georgia.

Features Include:

• Functions: Integration in control circuits up to category 4 in accordance with EN ISO 13849, Position-independent E-STOP command input, Reset function (reset button with indicator), Rope head with alignment indicator
• Rated Insulation Voltage: 400 VAC, 500 VDC
• Conventional Thermal Current, max.: 10 A
• Dimensions: 56 mm x 47.8 mm x 129 mm
• Housing Material: Metal, ZAMAK
• Type of Fastening: Through-hole mounting
• Type of Cable Entry: M20 x 1.5
• Installation Position: On rope pull axis
• Actuator, rope length, max. (at 20 °C temperature difference): 24 m

Need More Information?

• Leuze ERS200 Safety Rope Switch Operating Instructions
• Leuze Safety Switches Brochure
