Autonics
S2ER-E3RA
E-Stop, Ø22mm, Ø40mm Head, Red, Push-Lock, Turn-Reset, NO, 110VAC/10A, 220VAC/5A,
$11.00
**Tariff Update: Select Manufacturer Tariffs Will Begin on April 14th, 2025** Read the latest!

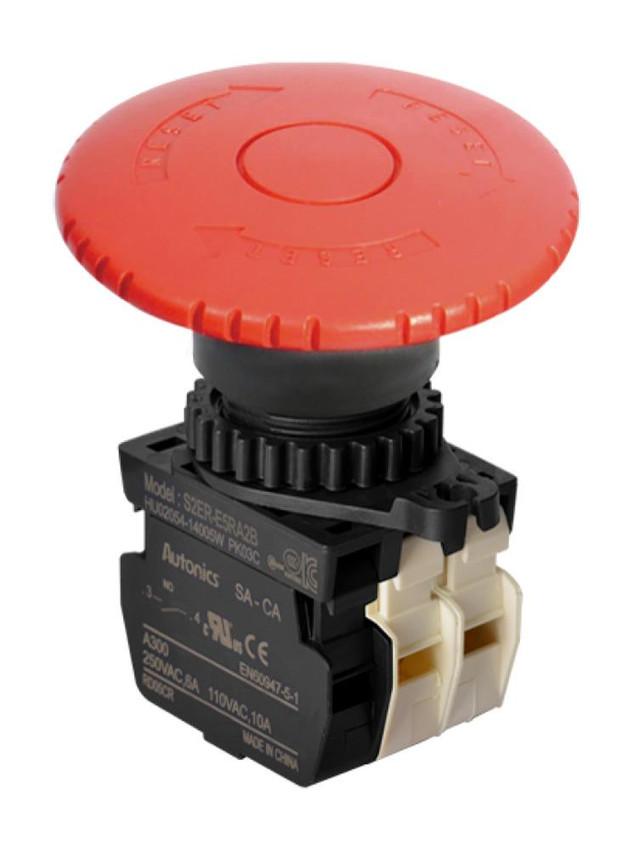

S2ER-E5RA2B
Alt: *This Item is Shipped in Components, S2ER Series
$20.00
E-Stop, Ø22mm, Ø60mm Head, Red, Push-Lock, Turn-Reset, 1NO/2NC, 110VAC/10A, 220VAC/5A, *Shipped in Components: 1 Each of S2E5-E5R & SA-CA, 2 of SA-CB
- Weight:
- 0.50 LBS
- Minimum Purchase:
- 1 unit
Description
Autonics is a Korean-based company that is a leading provider of automation solutions worldwide. They have had offices in the U.S. since 2001 and have a warehouse and sales office right here in Illinois.
Autonics develops and manufacturers most of their products which means they are high quality, readily available and competitive. Their products range from sensors and controllers to safety and industrial networking devices.
Specifications
Color
Red
Illuminated/Non-Illuminated
Non-Illuminated
Normally Open/Closed
See Spec
Pushbutton Type
Push Lock/Twist Release
All - Specific Ratings
IP52
Series
S2ER Series
Size
22mm
Type of Product
Emergency Stop/E-Stop
Warranty
3 Years
Alternate Part Number
*This Item is Shipped in Components, S2ER Series
Weight
0.5
Features Include:
- Contact block Electrical specification Power voltage/current: 110VAC~/10A, 250VAC~/6A
- Protection structure: IP52
- Approval: @(KC) @(CE)(LED blocks are except @(KC) certifications)
- Weight Mounting hole Ø22/25: Approx. 27g
- Weight Housing: Approx. 7g
- Weight Contact block Singular type A/B contact: Approx. 11g
- Operation type: Push-lock, Turn-reset
- Button type: D40(short head, non-illuminated)
- Color: Red
- Contact block: A contact: 1, B contact: 2
- Contact block type: Singular type
- Environment Ambient temperature: -15 to 55℃, storage: -25 to 65℃
- Environment Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
