Weg

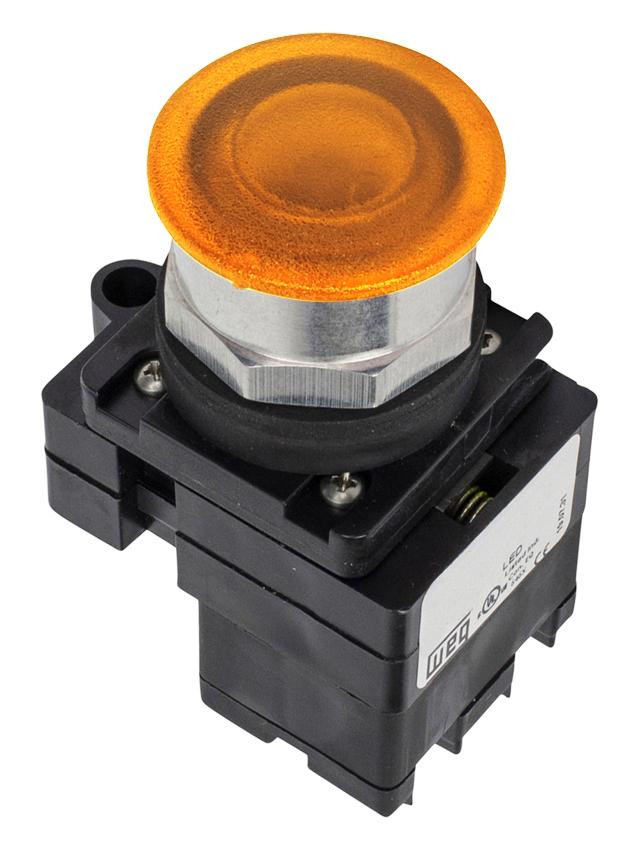

CSW30-BEPI3D67
E-Stop Operator, Ø30mm, Illuminated Push-Pull, Amber, 480VAC/DC LED Lamp Voltage, Normal Duty, 600VAC Voltage Class, NEMA 4, IP66, CE Cerification, CSW30 Series
$82.60
Product image is representative only, please verify specifications.
CSW30H-BEPI3D67
Alt: 14379556
$87.32
E-Stop Operator, Ø30mm, Illuminated Push-Pull, Yellow, 480VAC/DC LED Lamp Voltage, Hazardous Duty, 600VAC Voltage Class, NEMA 4, IP65, CE Certification, CSW30H Series
- Weight:
- 0.53 LBS
- Minimum Purchase:
- 1 unit
Description
WEG is a global manufacturer of electric motors, variable frequency drives, soft starters and controls. The controls line includes contactors, starters, circuit breakers and much more.
WEG Electric Corp. USA, located in Duluth, GA, has a number of distribution centers including one right here in the Chicago area.
Series Features Include:
- NEMA 4, IP65 Rated
- Fits 1-13/64 (30.5mm) hole without notch required
- Contact blocks snap-in (fast & easy assembly)
- Up to 8 contact blocks for non-illuminated operators and up to 4 contact blocks for illuminated operators
- LED lamps with built-in leakage protection
- Security features Standard: Screw tightening mounting bracket, Optional: Rubber boots for an additional layer of protection from corrosive chemicals from hands on operations or wash-down environments
Technical Information:
Accessories
Check any items you would like to add to your cart, and then tap the ‘Add Selection to Cart’ button.
Weg
BC10LR-CSW30H
Auxiliary Contact Block, Logic Reed, Hermetically Sealed (40W Resistive), 1NO, CSW30H Series Accessory
$16.52
Weg

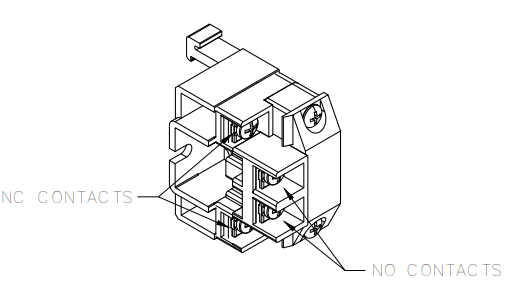

BC11FS-CSW30H
Auxiliary Contact Block, Factory Sealed (720VA) Product, 1NO/1NC, for Linear Devices, CSW30H Series Accessory
$70.80
Weg
BC02MP-CSW30H
Auxiliary Contact Block, 180VA Inductive, Hermetically Sealed, 2NC, Mid-Power Reed, CSW30H Series Accessory
$76.70
Weg
BC11MP-CSW30H
Auxiliary Contact Block, 180VA Inductive, Hermetically Sealed, 1NO/1NC, Mid-Power Reed, CSW30H Series Accessory
$76.70
Weg
CSW30H-BSI0D67
Pushbutton Operator, Ø30mm, Illuminated Extended, White, 480VAC/DC LED Lamp Voltage, Hazardous Duty, 600VAC Voltage Class, NEMA 4, IP65, CE Certification, CSW30H Series
$64.90
Weg
CSW30H-BS2
Pushbutton Operator, Ø30mm, Non-Illuminated Extended, Green, Hazardous Duty, 600VAC Voltage Class, NEMA 4, IP65, CE Certification, CSW30H Series
$18.29
Weg
CSW30H-BCI0D67
Pushbutton Operator, Ø30mm, Illuminated Ø40mm Mushroom, White, 480VAC/DC LED Lamp Voltage, Hazardous Duty, 600VAC Voltage Class, NEMA 4, IP65, CE Certification, CSW30H Series
$64.90
Weg
CSW30H-BCJ2
Pushbutton Operator, Ø30mm, Non-Illuminated Ø60mm Jumbo Mushroom, Green, Hazardous Duty, 600VAC Voltage Class, NEMA 4, IP65, CE Certification, CSW30H Series
$26.55
